Digital Crease-Recovery Test Machine for Textile/ Fabric as per AATCC66 / ISO2313/ M&S

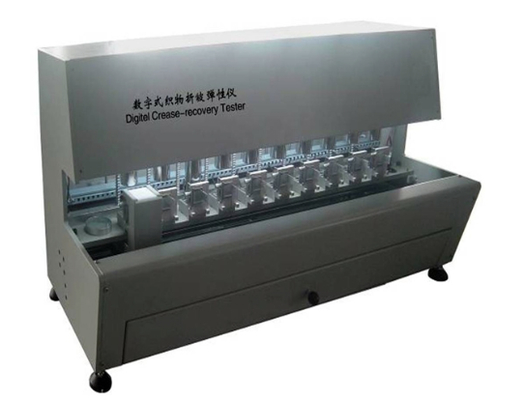

SL-F57 Digital Crease-Recovery Tester

The scope of application determines the performance of various textile fabrics when folded and pressurized under specified conditions, and after pressure relief, the fabric can be restored to the original state to a certain extent.

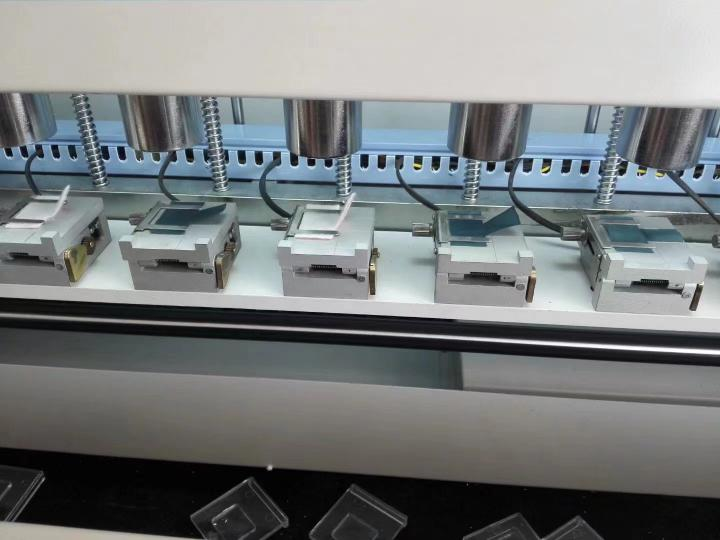

1. Test station: 10
2. Samples under pressure load: 10N, error: ±1%
3. Angle range: 0~180", ±1 degree
4. Sample compression time: 5min±5s
5. Compression area: (18x15)mm
6. Crease recovery time: 5 min after pressure relief (slow elastic); 15s (quick bomb)
7. Power: AC 220V 50Hz Power: 80w
8. Dimensions: 1090mm× 450mm× 500mm
9. Weight: 60kg

• Robot constant automatic pressure, unloading weight, reducing the workload of the experimentals and manual error
• The stepper motor automatically turns over the plate, which promotes smooth turnover action and effectively eliminates the influence of the sample return angle by the turnover vibration
• CCD automatic imaging, dynamic and static image processing, automatic shooting of crease angle, real-time image saving, providing original evidence for test result disputes
• Test station 1-10 can be any n/10 (n:1-10) to do the test, allowing single or multiple group data selection, improving work efficiency
• Option for single quick or slow round, or double mode of quick round and slow round in one test process
• Test software with built-in electronic protractor (0~180° measurement) and data correction capability
• Test software provides static and dynamic image processing with comprehensive data statistics, analysis, storage, and output
