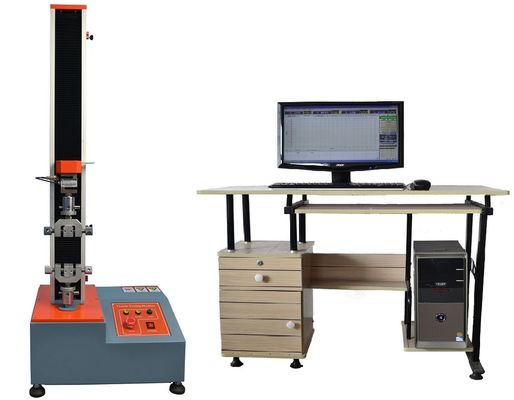

PC Control Single Column Universal Tensile Testing Machine with 100-500N Capacity for Material Testing

PC Control Single Column Universal Tensile Testing Machine with 100-500N Capacity for Material Testing

Brand Name:	SKYLINE
Model Number:	SL-SBA-50B
MOQ:	1 unit
Price:	Negotiable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	10 pcs/ month

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

SKYLINE:

Computer-controlled Tensile Testing Machine (Touch Screen Model)

Optional Capacity:

10kg（100N）、20kg（200N）、30kg（300N）、50kg（500N）

Unit Switching:

G、kg、Ib、N、KN

Unit Of Displacement:

Mm/cm/in

Decomposition Degree Of Load:

1/200,000

Load Accuracy:

±0.3%

Test Speed:

0.01～500 Mm/min

Report Output:

Can Output WORD, Excel, PDF Format Report

Packaging Details:

Plywood case

Supply Ability:

10 pcs/ month

Highlight:

PC Control Tensile Testing Machine

Single Column Universal Testing Machine

100-500N Capacity Material Testing Machine

Product Description

PC Control Single Column Universal Tensile Testing Machine

Computer-controlled universal material tensile and compressive testing machine for capacities ranging from 100N to 500N.

Product Overview

This series of testing machines is designed for comprehensive mechanical and physical testing across various materials including films, hardware, buttons, rubber materials, textiles, building materials, insulators, wires, cables, terminals, and more. Capable of performing tensile, tearing, piercing, peeling, compression, bending, shearing, fixed load, positioning, three-point bending, and four-point bending tests.

Testing Standards Compliance

Manufactured according to GB/T 16491-2008 standard and verified per GB/T12160-2002 and GB/T16825-2008. Compliant with international standards including BS EN ISO 1421, GOST 18299, DIN 53357, BS 903, BS 5131, ASTM D3574, and ASTM D6644.

Key Features

Multiple test modes: common, square, round, tearing, peeling, cord, canvas, fixed load, positioning and shifting, spring, three-point bending resistance, four-point bending resistance, fixed force and fixed time keeping
Standard network computer interface with professional measurement and control software
Real-time display of force-displacement, force-time, displacement-time, and stress-strain curves
Automatic calculation of maximum force, yield force, average force, maximum deformation, yield point, and elastic modulus
Flexible report editing and printing with tensile strength values displayed in MPa
Multi-point statistics during testing with automatic calculation of average and fracture values
Unit conversion for strength (KGF/N/LBF/GF/KN/T) and displacement (mm/cm/in)
Automatic homing function and configurable overload protection

Technical Specifications

Parameter	Specification
Model	SBA-50B
Optional Capacity	10kg (100N), 20kg (200N), 30kg (300N), 50kg (500N)
Unit Switching	g, kg, Ib, N, KN
Displacement Unit	mm, cm, in
Machine Monitor	7-inch color touch screen display with stretch curve display
Displacement Mode	Total displacement and two-point displacement
Load Resolution	1/200,000
Load Accuracy	±0.3%
Power Magnification	×1, ×2, ×5, ×10, ×20, ×50, ×100 (seven-segment automatic switching)
Maximum Stroke	700mm (effective stretching space 460mm)
Test Speed	0.01～500 mm/min
Speed Accuracy	±0.2%
Displacement Resolution	0.001 mm
Sampling Frequency	500Hz
Return Function	Automatic return to original test starting point
Keyboard Shortcuts	Inching up fast, inching down fast, inching up slowly, inching down slowly (2 speeds)
Overload Protection	Electronic protection and mechanical protection
Software	Full-closed-loop professional computer system test software
Report Output	WORD, Excel, PDF format
Gear Train	Planetary gearbox + ball screw
Electrical Motor	Hybrid servo
Sensor	Force transmission CR series
Weight	Approximately 35kg
Dimensions	390mm (L) × 310mm (W) × 1020mm (H)
Power Supply	1∮, 220V/50HZ, 5A (configurable by country or designation)
