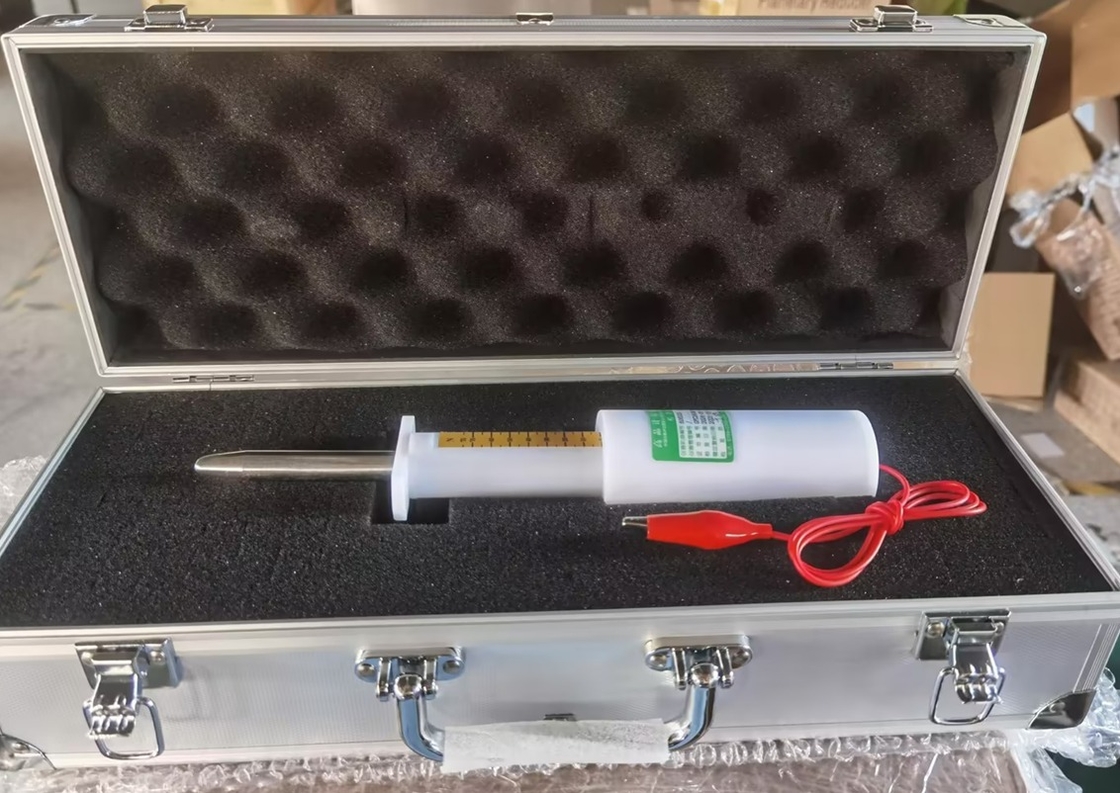

Test Probe 11 Rigid Finger Probe Anti Shock Test Device IEC 61032 75N/50N Test Force

Name: Test Probe 11 Rigid Finger Probe Anti Shock Test Device IEC 61032 75N/50N Test Force
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-P11
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-P11
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Materials:

Nylon Stainless Steel

Nodular Finger Length:

80mm

Nodular Finger Diameter:

12mm

Dam-board Diameter:

50mm

Dam-board Thickness:

5mm

Standard:

IEC61032-Probe 11-Figure 7

Packaging Details:

Export Packaging

Product Description

Complies with IEC61032 Figure 7 Test Rig 11, GB/T16842 Test Probe 11, GB8898, IEC60065, IEC60598, GB7000, IEC60335, GB4706 and other standard requirements. It can also be used to test the mechanical strength of the holes in the housing or the internal baffle of the housing.

Can be ordered with 10~50N thrust.

Can be ordered with 10~75N thrust.

Test Finger Usage

1. As shown in the figure, the finger portion of the thrust test finger cannot touch the energized parts or cannot approach the dangerous parts, and the 50mm-20mm stopper cannot be entered.

2. In the test requirements for preventing access to dangerous parts, the thrust test finger needs to apply thrust.

Test Probe 11 Rigid Finger Probe Anti Shock Test Device IEC 61032 75N/50N Test Force 0

Technical Parameters

Materials	Nylon+Stainless Steel
Nodular Finger Length	80mm
Nodular Finger Diameter	12mm
Dam-board Diameter	50mm
Dam-board Thickness	5mm
Standard	IEC61032 Figure 7
Force	10-75N
