AC220V / 50Hz Customized Multi-station Six Stations Switch Endurance Tester Toy Test Machine

This tester is designed in accordance with the corresponding provisions of GB2099.1, GB17465.1, GB15092.1, and is used to test the life test equipment of switch products for household and similar uses.

And connected to the load box to test the electrical life of plugs and sockets and couplers and appliance switches.

It is necessary to test equipment for quality control and quality inspection by the quality inspection department of electrical accessories and household appliances manufacturers.

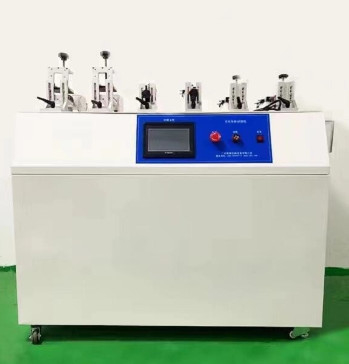

The switch and plug socket life testing machine adopts the cylinder to do the power, drive the slide assembly with plug fixture to make reciprocating linear movement, so as to complete the switch on and off action. Its action frequency and on/off time are controlled by PLC (programmable controller) and touch screen, which is easy to operate and reliable to control.

1. The number of test materials:

six stations, including one or two stations rotary switch test, three or four stations rocker switch test, and five or six stations push-button switch test.

2. Test speed:

button switch: 5~60 times / minute adjustable; rotary switch 1~10 times /minute adjustable ( Note: once for the reciprocal a cycle).

3. The number of tests:

1 ~ 999999 times can be set.

4. Turn-on time:

0 ~ 999.9 seconds (minutes) adjustable.

5. Disconnection time:

0 ~ 999.9 seconds (minutes) adjustable;

6. Rotation speed:

5 ° ~ 360 ° / S can be set

7. Rotation angle:

5 ° ~ 7200 ° can be set

8. The number of gears:

1 ~ 10 gears can be set

9. Rotation mode:

clockwise rotation, stepper motor precise positioning

10. Power supply:

AC220V / 50Hz.

11. Use environment:

temperature 0 ~ 40 ℃, relative humidity ≤ 85 %, no violent shaking, shock, vibration, and non-corrosive air places.

The control system uses a touch screen. When selecting functions and setting parameters, simply press the button for that function option with your finger according to the instructions in the screen, and do not press hard to avoid damaging the screen film.

Station 1: Enter station 1 test interface.

Other workstations are the same as one workstation

1. Number of tests: display the actual number of times each station is tested, and the red box is the number of settings.
2. Gear time interval: the time interval of setting gear 0-99.9S can be set.
3. Test angle: 5° ~ 360° can be set
4. Gear setting: set the number of sample gears
5. Test speed: 5° ~ 360° / S can be set
6. Operation status: flashing when testing, not flashing when stopping.
7. Identification options: Yes Alarm occurs when the product produces a fault long pass or long break; No Does not detect the good or bad of the sample and stops when the number of tests is reached.
8. Start: start each switch when pressed
9. Stop: stop the bit switch test when pressed.
10. Clear: clear the number of tests of the bit switch.
11. Alarm release: when the alarm occurs, press this button to stop the alarm.
12. Origin confirmation: after manually adjusting the sample origin, press the origin confirmation to start, not to confirm the origin can not start, to protect the sample switch.

1. Number of tests: display the actual number of tests at each station, the red box is the set number.
2. Turn-on time: set/display the turn-on time of each station during the test.
3. Stroke setting: set the stroke of the drawbar: 0-50MM can be set
4. Disconnection time: set/display the disconnection time of each station during the test.
5. Speed setting: 0-100MM/S can be set
6. Operation status: flashing when testing, not flashing when stopping
7. Identification options: Yes Alarm occurs when the product produces a fault long pass or long break; No No detection of the good or bad of the sample, stop when the number of tests is reached
8. Start: start each switch when pressed
9. Stop: stop the bit switch test when pressed.
10. Clear: Clear the test data of the bit switch.
11. Alarm release: press this button to release the alarm when it occurs.

Specimen installation: first install the rotary switch to rotate to the initial position, then clamp the rotary switch on the right fixture, and then clamp the rotary head on the chuck with a special handgrip (see below picture)

Mount the rocker/key switch tightly in the fixture and adjust the position up, down, left and right

1. Install the specimen and adjust the position, point it by hand so that the switch under test can be turned on and off normally.
2. Set up all the test parameters according to the test requirements.
3. Test without detecting the good or bad of the sample, select no identification, stop after reaching the set number of times.
4. Detect the good or bad of the sample during the test, put the sample on the load terminal and choose to have identification.
5. Press "Start" key, the test starts, press "Stop" key, the test stops. When the test reaches a predetermined number of times, the test automatically stops, press "zero" to zero the test data.
6. After the test, turn off the power.

• The instrument should be cleaned frequently.
• During the work, avoid artificially blocking the movement of moving parts.
• The shell should be grounded.
