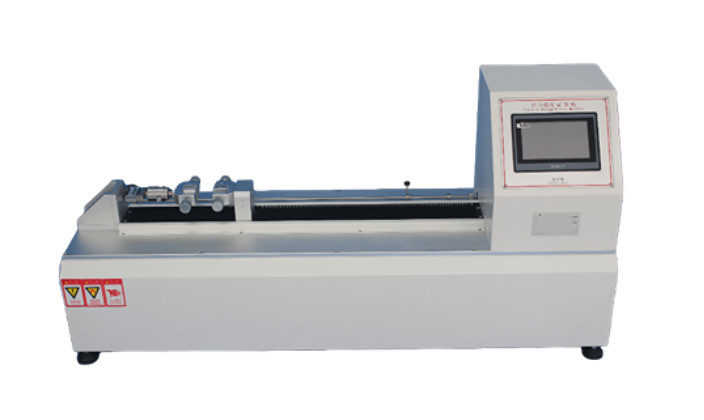

Horizontal Tensile Testing Machine Shoes testing machine for recovery test of gores

Horizontal Tensile Testing Machine Shoes testing machine for recovery test of gores

  • Horizontal Tensile Testing Machine Shoes testing machine for recovery test of gores
Horizontal Tensile Testing Machine Shoes testing machine for recovery test of gores
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-H50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: T/T
Supply Ability: 1 unit/Month
Contact Now
Detailed Product Description
Force Range: 0-500N Test Stroke: 400mm
Unit Switch: G、kg、Ib、N、KN Test Speed: 0.01~300 Mm/min
Dimension: 1270*520*300mm Weight: 65KG

Description



The horizontal tensile testing machine adopts the characteristics of hydraulic force application, computer automatic data collection, printing results, convenient operation, high test accuracy, and stable force application. It can be used for tensile, tensile shear, tear and other mechanical properties tests of metal, non-metal and other materials, and can meet various test methods and standards such as ISO, GB. This equipment is widely used in Textile,Shoes,Electric Cable and quality inspection institutions at all levels.



Tensile Test Clamps



Horizontal Tensile Testing Machine Shoes testing machine for recovery test of gores 0



Technical parameters



Force Range 0-500N
Test Stroke 400mm
Unit Switch g,kg,Ib,N,KN
Load resolution 1/200,000
Load Accuracy ±1%
Test Speed 0.01~300 mm/min
Displacement resolution 0.001 mm
Control Method PLC Touch Screen
Printer YES
Machine Dimension 1270*520*300mm
Machine Weight 65KG
Power 1∮,220V/50HZ,5A
