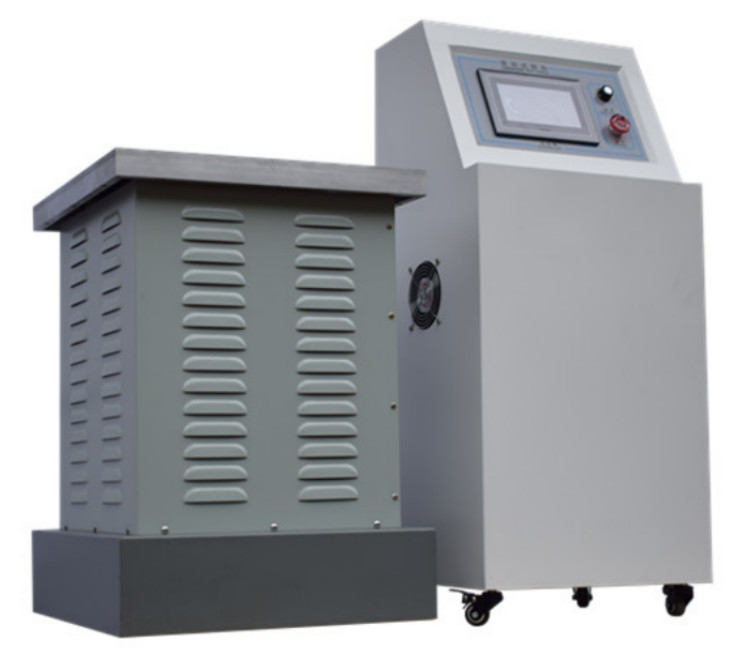

60KG Triaxial Simulation Vibration Tester Electromagnetic Vibration Tester(X,Y,Z Direction Vibration Mode)

Brand Name:	SKYLINE
Model Number:	SL-VT50
MOQ:	1
Price:	negoitable
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Maximum Test Load:

60KG

Test Table Size:

500 × 500 Mm

Amplitude:

0-5mm

Sweep Frequency:

1-200Hz

Precision:

1 HZ

Power:

1.6KW,220V 50HZ Or Customized

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

Electromagnetic Vibration Tester

X

Y

Z Vibration Tester

60KG Vibration Tester

Product Description

Machine introduction

The electromagnetic vibration test machine is widely used in defense, aviation, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used to detect early faults, simulate the actual working condition assessment and structural strength test. The product has a wide application range, wide application area, remarkable test effect and reliability. The equipment supports sine wave, frequency modulation, frequency sweep, programmable, frequency doubling, logarithm, time control.

Machine Feature

1. Adopt the most advanced simple operation technology, fixed frequency, sweep frequency at any time easy to switch
2. With time timing, countdown display function
3. Touch controller, simple and convenient operation, solve the shortcomings of digital display operation inconvenience
4. Real-time synchronous display of control parameters without manual intervention.
5. The base of the machine adopts vibration avoidance device, which is easy to install and smooth to run without installing anchor screws
6. Built-in amplitude prediction program and amplitude modulation re easy
7. Four-point synchronous excitation, table vibration uniform
8. Stepless adjustment of amplitude, fixed frequency and sweep frequency operation function to adapt to various test requirements in different industries
9. Increase the anti-interference circuit to solve the interference of the control circuit due to strong electromagnetic field

10.Curve display function, you can view the frequency waveform changes at any time.

Product technical parameter

Test Parameter

Maximum test load:	0-60 kg
Vibration direction	vertical + horizontal + before and after
Test Table size	500 × 500 mm
Amplitude	0-5mm (random, change with frequency)
Sweep frequency	1-200Hz can be set arbitrarily, true standard back and forth frequency sweep
Maximum acceleration	10G (random, change with frequency)
Realize functions	frequency modulation, frequency sweeping and time control
Precision	frequency can be displayed to 1Hz, precision 1Hz
Vibration waveform	sine wave
Time control	any time can be set (in seconds)
Power	1.6KW
Power supply voltage	220V 50HZ or Customized
