Mattress Testing Machine with 2kN Sensor Aluminum Frame and Height Lost Test for EN 1957 Compliance

Mattress Testing Machine with 2kN Sensor Aluminum Frame and Height Lost Test for EN 1957 Compliance

Mattress Testing Machine with 2kN Sensor Aluminum Frame and Height Lost Test for EN 1957 Compliance
Mattress Testing Machine with 2kN Sensor Aluminum Frame and Height Lost Test for EN 1957 Compliance
Mattress Testing Machine with 2kN Sensor Aluminum Frame and Height Lost Test for EN 1957 Compliance
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T07I
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negoitable
Packaging Details: Plywood case
Delivery Time: 25 working days
Payment Terms: T/T
Supply Ability: 1 unit/Month
Contact Now
Detailed Product Description
Capacity: 2kN Sensor*1 Servo Motor: 0.4kW*1、1.5kW*1
Cylinder Stroke: Stroke 500mm, Max Thrust 1.39kN Test Speed: 10～20 Times/min
Power Supply: 220V,50HZ Air Source: ≥6kg/cm²
Highlight:

10～20 times/min Mattress Testing Machine

,

500mm Stroke Mattress Testing Machine

,

EN 1957 Mattress Testing Machine

Mattress Testing Machine EN 1957 with 10～20 times/min Test Speed and 500mm Stroke
Product Description

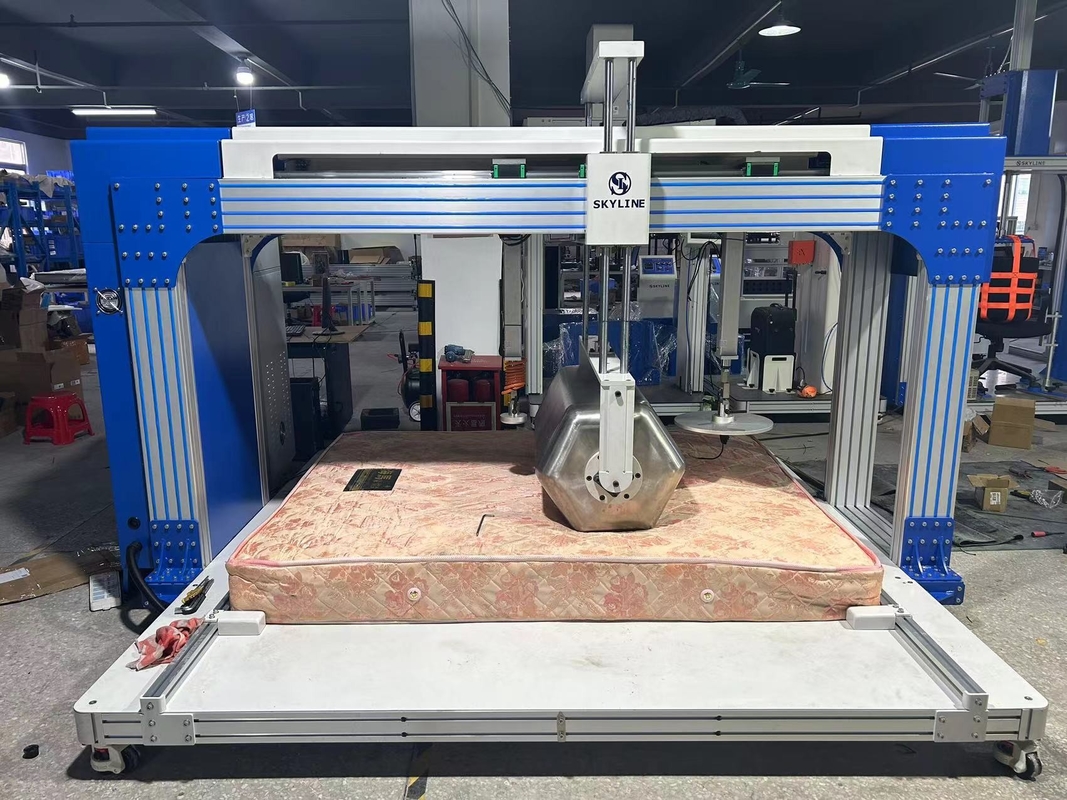

This professional mattress testing machine evaluates spring mattress hardness levels and performs durability tests on mattress surfaces and rollers. It records loading process curves and analyzes hardness values based on test data.
Key Features
  • Constructed with high-quality aluminum frame for durability and elegant appearance
  • Precision ARAM controller with intuitive software interface
  • Delta brand PLC and Servo Motors for precise control
  • Dual-motor system (vertical and horizontal movement)
  • Built-in safety alarm system
  • Electric roller lift for easy operation
  • PC control with touch screen interface
  • Automatic stop after preset test cycles
  • Over-movement limit protection

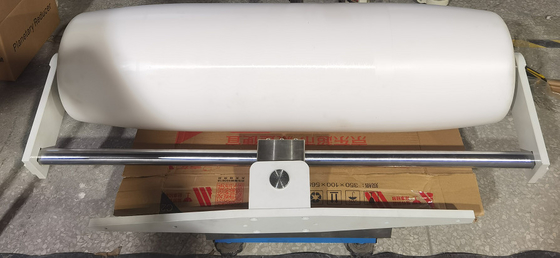

  • Nylon roller for reduced wear and extended service life
  • Optional PC or PLC control configurations
Testing Capabilities
  • Rolling Durability Test (ASTM F1566 or EN 1957 standard)
  • Mattress Hardness Test (ASTM F1566 or EN 1957 standard)
  • Height Lost Test (EN 1957 standard)
  • Mattress Edge Test (EN 1725 standard)
Technical Specifications
Test Speed 10～20 times/min
Stroke 500mm
Testing Standard EN 1957 (140kg, EN Round Cylinder: 30000 cycles)
Estimated Packaging Dimensions 3000 * 1600 * 2000mm
Estimated Gross Weight 1300kg
HS Code 9024800000
