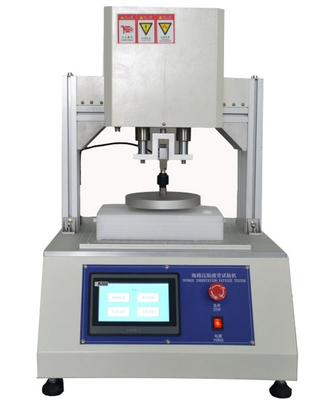

ISO 3385 ASTM D3574 Foam IFD Test Machine Foam Pounding Fatigue and Compression Hardness Test Machine

Name: ISO 3385 ASTM D3574 Foam IFD Test Machine Foam Pounding Fatigue and Compression Hardness Test Machine
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T42
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T42
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Capacity:

200KG

Unit Switch:

KG,N,LB

Max.Stroke:

200mm

Counter:

1-999,999 Cycyles

Power:

220V,50HZ

Dimension:

600*500*800mm(L*W*H)

Packaging Details:

Plywood case

Supply Ability:

1 unit/Month

Highlight:

IFD Foam Pounding Fatigue Test Machine

Foam Pounding Fatigue Test Machine

Foam Compression Hardness Test Machine

Product Description

Product Information

It is mainly used for the reciprocating impact compression fatigue test of foam polymeric materials to determine the thickness reduction value and hardness reduction value (residual deformation rate) of the sample, and thus the dynamic fatigue characteristics of the material can be understood.

Testing Standards

ISO 3385, ASTM D3574

Technical parameters

Control mode	LCD Touch screen control
Induction mode	Precision load element
Capacity	200kg
Unit switch	Kg, N, LB
Pressure plate	overall diameter of 250 mm± 1 mm with a 25 mm± 1 mm radius at its lower edge, provided with a device for applying a maximum force of 750 N ± 20 N during one loading cycle
Lower platform	420×420mm, porosity diameter 6mm, spacing 20mm
Maximum stroke	200mm
Test speed	(70 ± 5) times/min (adjustable)
Counter	1-999,999cycles
Power source	Servo motor
Transmission mode	Precision ball screw
Power source	Single-phase, 220V, 50Hz/60Hz, 2.5A
Weight	90kg
Dimension(L×W×H)	600×500×800mm
