Name: SL-E01 Foam Environment Pretreatment Test Machine Temperature and Humidity Test Chamber
Brand: SKYLINE
SKU: SL-E01
Rating: 4.8 (102 reviews)

Home Products Environmental Test Chamber

SL-E01 Foam Environment Pretreatment Test Machine Temperature and Humidity Test Chamber

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-E01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negoitable
Packaging Details:	Plywood case
Delivery Time:	25 working days
Payment Terms:	T/T
Supply Ability:	1 unit/Month

Contact Now

Detailed Product Description

Temperature Range:	-40°C~+150°C	Humidity Range:	20%~98%R.H.
Weight:	Approx.170 KGS	Inner Size:	500400550mm
Outer Size:	10209501420	Power:	6KW
Highlight:	SL-E01 Test Chamber , Temperature Humidity Test Chamber , Foam Environment Pretreatment Test Chamber

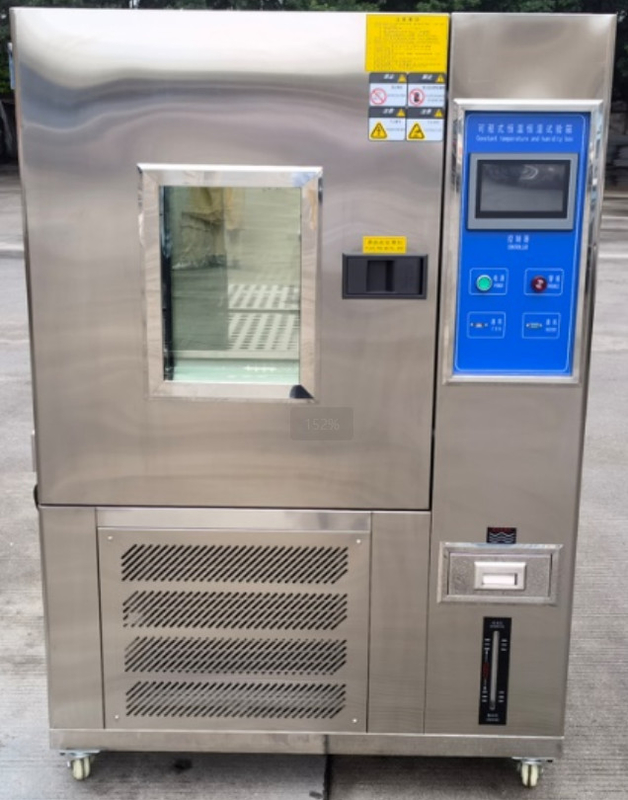

SL-E01 Temperature and Humidity Test Chamber

Machine Introduction

This machine is an independent test equipment for electrician, aviation, automobile, home appliance, paint, scientific research, etc., used to test and determine electrical, electronic and other products and materials.

Features

Power Supply Source: Single-phase, AC220V~AC380V, 50Hz~60Hz, 5KW~14KW;
Imported high-precision microcomputer color touch screen temperature and humidity controller, switch between Chinese and English;
Test hole (left side of the machine) 50mm, can be used for external test power cable or signal cable;
Original European and American imported fully enclosed low noise high and low temperature compressor;
Double-layer high temperature resistant high-strength sealing strip is used between the door and the box to ensure sealing;
The inner and outer boxes are made of imported (SUS#304) stainless steel;
The observation window adopts multi-layer hollow tempered glass and inner glued sheet type conductive film (the test process can be clearly observed);
Safety protection device, when any failure occurs, the fault status is immediately displayed on the screen and the power is cut off to ensure the safety of the machine, the tested product and the use.

Applications

>To simulate test environment with different temperature and humidity;

>Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test;

>Moistening test and drying test…

>Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation;

>Uncover test unit weakness in a short-term test with accelerated time effect.

Technical Parameter:

Inner Size WHD (mm)	500400550
External size WHD (mm)	10209501420
Temperature range	-40°C~+150°C
Humidity range	20%~98%R.H.
Weight	170 KGS
Power	6 KW
Voltage	220 V
Temp humidity analytic accuracy/uniformity	±0.1°C; ±0.1%R.H./±1.0°C; ±3.0% R.H.is special optional condition.
Temperature humidity control accuracy/fluctuation	±1.0°C; ±2.0% R.H./±0.5°C; ±2.0% R.H.
Heat/cooling time	About 5.2°C/min; about 1.2°C/min (5~10°C/min is a special optional condition)
Inner and outer materials	SUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer.
Insulation materials	Resistant to high temp, high density, format chlorine, ethyl acetum foam insulation materials
Cooling system	Air cooling/single segment compressor(-20°C), air and water double segment compressor (-40°C~-70°C)
Protection devices	Fuse switch, compressor overload switch, refrigerant high- and low-pressure protection switch, super humidity over-temperature protection switch, fuse, failure warning system
Parts	Watching window, 50mm testing hole, PL internal bulbs, partition plate, dry and wet ball gauze
Controller	TEMI” South Korea “TEMI” “OYO” Japan's “OYO” Brand optional
Compressor	Original France “Tecumseh” brand
