| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-T07I |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1 unit/Month |
| Capacity: | 2kN Sensor*1 | Servo Motor: | 0.4kW*1、1.5kW*1 |
|---|---|---|---|
| Cylinder Stroke: | Stroke 500mm, Max Thrust 1.39kN | Test Speed: | 10～20 Times/min |
| Power Supply: | 220V,50HZ | Air Source: | ≥6kg/cm² |
| High Light: | Mattress Height Lost Test Machine,Roller Durability Test Machine,EN 1957 Mattress Integrated Testing Machine |
||

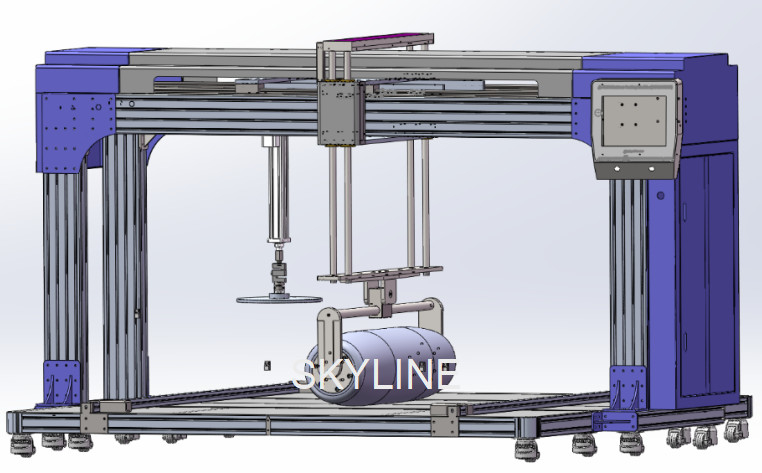

Product Information of Mattress Testing Machine
This machine is used for testing the hardness of spring mattress and evaluating the hardness level.
It also can be used for durability test for the surface of mattress and Roller durability test. Evaluate the test data before and after the test.
Record the curve of loading process and evaluate the value of hardness according to relevant test data.
It is made of aluminum, generous and beautiful.
Control system adopts special high precision and high intelligence ARAM controller.
The software interface is clear and easy to be operated.
Product Information of Packing Detail
Estimated Packaging Dimension: 3000*1600*2000mm
Estimated Gross Weight:1300kg
HS Code: 9024800000
Testing Standards of Mattress Testing Machine
EN 1957(140kg,EN Round Cylinder:30000 cycles)
Feature
1. The whole machine frame made of high quality aluminum, with smart and elegant shape
2. Delta brand PLC and Servo Motors
3. Machine configuration two motors, one for the vertical direction of the roller, and the other is responsible for the horizontal direction of the drum drive, the two motors are used in DELTA servo motor
4. Machine configuration alarm device, indicating the safe operation
5. Electric lifts the Roller, easy to operate.
6. PLC controller with large colorful touch panel
7. Automatically stops after preset cycles completed
8. over moving limit protection

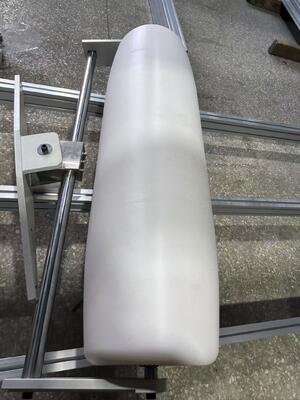

9. Wooden roller softly contacts the surface of the mattress
