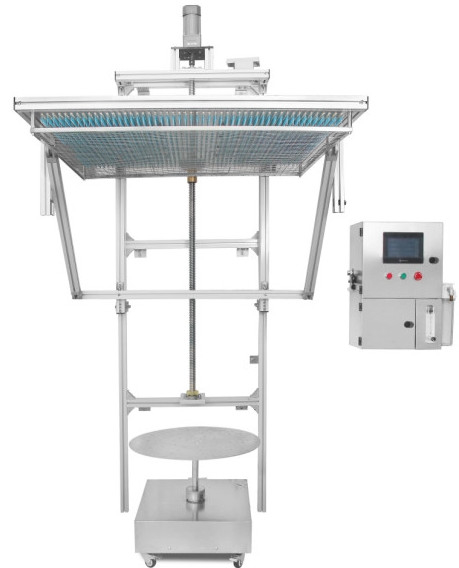

IPX1 IPX2 Wall Mounted Stainless Steel Environmental Test Chamber / Vertical Drip Tester

Application of environmental test chamber

The main function of this equipment is to test the physical and other related performance of products under the conditions of simulated dripping weather for products such as electrical and electronic products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their components and parts. After the test, through the test to determine whether the performance of the product meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Standards

IEC60529: 1989 + A1: 1999 + A2: 2013, ISO20653 Road Vehicles

Characteristics

1. It is applicable to the waterproof grade test of IPX1 and IPX2.

2. Column structure, stable operation of equipment; The main frame can be packaged as a whole, which is convenient for transportation and saves on-site installation time.

3. The equipment frame is made of high-quality aluminum alloy, and the sample turntable is made of SUS304 # stainless steel plate to ensure no rust after long use.

4. Raindrop plate: vacuum design, made of high rust proof stainless steel, durable.

5. Raindrop plate lifting: high-quality electric hoist is used to control the raindrop plate, which can be lifted gently.

6. The nozzle contact position is brass tapered design, which can quickly replace the needle; A stainless steel mesh protective cover is installed under the needle to effectively prevent the test operator's head from accidentally touching the test needle.

7. Drip flow: the flow meter is equipped with a regulating valve, which can be adjusted manually and accurately.

8. The rain drip panel can be raised and lowered automatically, and the nozzle will stop automatically when it is 200 mm from the highest point of the tested object (detected by the photoelectric switch).

9. It has the function of compressed air drying. After the test is completed, the excess water in the drip box can be removed to avoid blocking the pinhole due to long-time ponding and scaling.

10. The sample stage uses a stepping motor, and the rotation speed and standard angle can be accurately set on the touch screen. The IPX1 standard requires a speed of 1r/min; It can automatically complete IPX2 angle test requirements: four positions drip rain for 2.5min respectively.

11. The turntable is equipped with a sample power socket (AC220,10A). The power on and power off time of the sample power can be controlled through the program: power off (0-999min) - power on (0-999min) - power off (0-999min), which is applicable to the power on and power off of the sample during the test.

12. The core control components are 7-inch touch screen+Panasonic PLC; The electrical components are imported brands such as LS and Omron; The wiring process shall meet the requirements of national standards, the layout of the electric board shall be reasonable, the wiring shall be firm, and the marks shall be clear.

13. The equipment base is equipped with 4 movable band brake casters for convenient movement and fixation.
