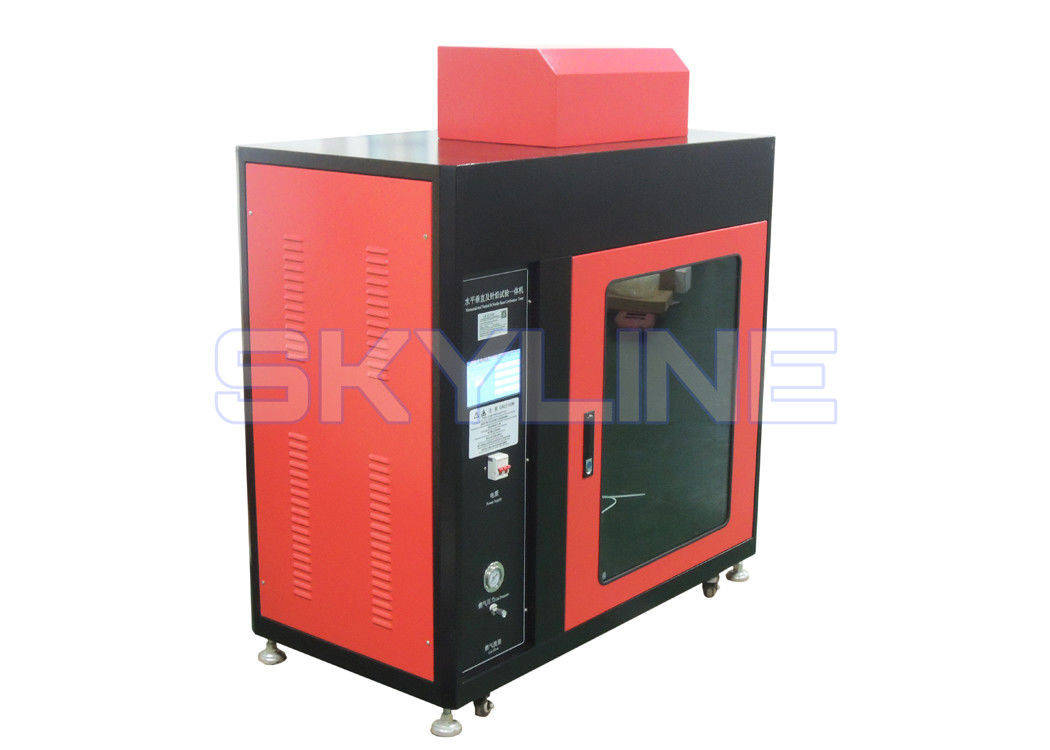

Black Interior Color Flammability Testing Equipment with Precision Gas Flow Controls

Product Description:

Features:

• Product Name: Horizontal-Vertical Flammability Test Chamber UL94, ISO 6722
• Suitable For: Conductor diameter greater than 8mm (section area is greater than 0.5mm2) or less than 8mm (section area less than 0.5mm2) of single wire and cable flammability evaluation. Suitable for lighting equipment, low-voltage electrical appliances, household appliances, electrical tools, electric motor, electric tools, electronic instruments, electrical instruments, electrical connectors and accessories such as electrical and electronic products and components of the research, production and quality inspection department.
• Sample Clamping Angle: 45 Degree
• Construction Material: Stainless Steel
• Automatic Ignition: Yes

Keywords: Flammability Test Chamber, Cable Flammability Test Apparatus, Cable Safety Test Equipment

Technical Parameters:

Product Name:	Horizontal-Vertical Flammability Test Chamber UL94, ISO 6722
Construction Material:	Stainless Steel
Burner Tube Internal Diameter:	Φ 9.5mm±0.3mm
Burning Gas:	High Purity Propane Gas, Liquefied Petroleum Gas
Suitable For:	Conductor diameter greater than 8mm (section area is greater than 0.5mm2) or less than 8mm (section area less than 0.5mm2) of single wire and cable flammability evaluation. Suitable for lighting equipment, low-voltage electrical appliances, household appliances, electrical tools, electric motor, electric tools, electronic instruments, electrical instruments, electrical connectors and accessories such as electrical and electronic products and components of the research, production and quality inspection department.
Flame Burn Time:	15 seconds
Specimen Support:	Fully Adjustable
Standards Met:	UL94, ISO 6722, IEC 60695-11-3, IEC 60695-11-4, UL94HB, V-0,1,2, 94-5VA,B, 94VTM-0,1,2, 94HBF,94HF-1,2
Volume Of Chamber:	>0.5m³
Interior Color:	Black

Applications:

The SKYLINE SL-F15 Flammability Testing Equipment is an excellent product for testing the fire resistance of electric wires and cables. It is an Electric wire Test Equipment designed to provide accurate and reliable results. The fully adjustable specimen support allows for testing of various sizes of wires and cables. The Burner Tube Internal Diameter of Φ 9.5mm±0.3mm ensures that the test is conducted under standardized conditions.

The Electric Wire Fire Tester is equipped with Automatic Ignition, which allows for easy and safe operation. The customers are required to supply the burning gas, which can be easily connected to the equipment. The Electric Wire Fire Resistance Tester is constructed from high-quality Stainless Steel, which ensures durability and reliability.

The SKYLINE SL-F15 Flammability Testing Equipment is perfect for use in various industries, including wire and cable manufacturing, electronics, and automotive. The equipment can be used to test the fire resistance of electric wires and cables used in these industries.

The SKYLINE SL-F15 Flammability Testing Equipment is supplied in a plywood case for safe transportation. The delivery time is 10 working days, and the payment terms include T/T, Western Union, and MoneyGram. The price is negotiable, depending on the order quantity.

To sum up, the SKYLINE SL-F15 Flammability Testing Equipment is a reliable and accurate tool for testing the fire resistance of electric wires and cables. It is an essential piece of equipment for various industries, and it is manufactured in China with high-quality materials. The equipment is easy to use, and it meets industry standards. The product is available to order with a minimum quantity of one unit, and the delivery time is 10 working days. The price is negotiable, and the payment terms include T/T, Western Union, and MoneyGram.

Support and Services:

Our Flammability Testing Equipment is designed to meet the highest industry standards and provide accurate and reliable results. We offer comprehensive technical support and services to ensure our customers get the most out of their equipment. Our team of experienced technicians is available to answer any questions and provide guidance on equipment operation, maintenance, and calibration. We also offer a range of training courses to help customers develop the skills necessary to use the equipment effectively. In addition, we provide repair and maintenance services to keep equipment running smoothly and minimize downtime. Our goal is to provide exceptional support and services to help our customers succeed.

Packing and Shipping:

Product Packaging:

The Flammability Testing Equipment will be packaged in a sturdy cardboard box with foam inserts to protect the equipment during shipping. The box will be clearly labeled with the product name and any necessary handling instructions.

Shipping:

The Flammability Testing Equipment will be shipped via a reputable carrier such as UPS or FedEx. The package will be insured and a tracking number will be provided to the customer. Shipping times will vary depending on the destination, but we will make every effort to ensure timely delivery.

FAQ:

A: The brand name of this flammability testing equipment is SKYLINE.

2. Q: What is the model number of this flammability testing equipment?

A: The model number of this flammability testing equipment is SL-F15.

3. Q: Is this flammability testing equipment certified?

A: Yes, this flammability testing equipment is certified with CE.

4. Q: Where is this flammability testing equipment manufactured?

A: This flammability testing equipment is manufactured in China.

5. Q: What are the payment terms for purchasing this flammability testing equipment?

A: The payment terms for purchasing this flammability testing equipment are T/T, Western Union, and MoneyGram.
