Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-T0E-1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negoitable |
| Packaging Details: | Plywood case |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T |
| Supply Ability: | 1 unit/Month |
| Load Capacity: | 5-200kg | Accuracy: | Within ± 1% |
|---|---|---|---|
| Display Mode: | PLC Control,touch Screen | Test Speed: | 50-300 Mm/min(Adjustable) |
| Machine Size: | Approx.500×400×1300mm | Machine Weight: | Approx.100Kg |
| High Light: | Shoes Tensile Strength Testing Machine,ISO 17708 Shoes Testing Machine |
||

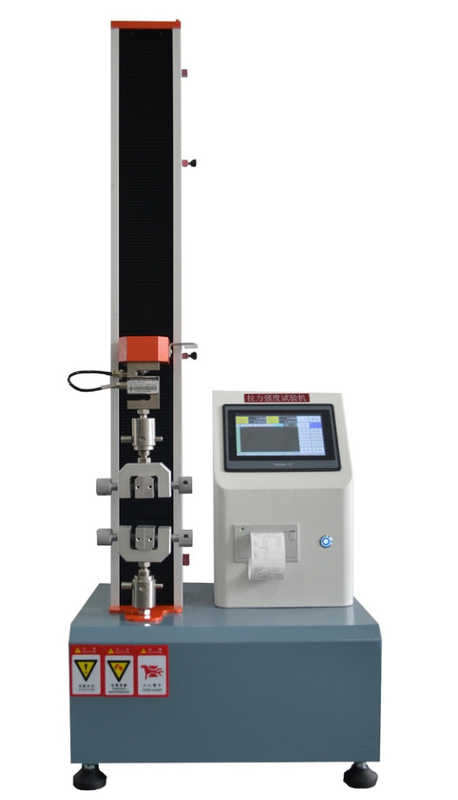

Machine Introduction
This machine is suitable for various materials and products in textile, rubber, plastic, synthetic leather, adhesive tape, adhesive products, plastic film, composite materials, electronics, metal and other industries to conduct tensile, compression, bending, shearing, peeling (90 degrees and 180 degrees), tearing and other tests to determine the product quality.
It is a simple tensile testing machine with simple structure and convenient operation. It can be placed on the workbench for testing. The touch screen control system is adopted to control the rotation of the variable frequency motor, and then drive the T-shaped screw to drive the load inductor to rise and fall after the speed change mechanical mechanism decelerates to complete the tensile or compression test of the sample. The force value is output by the sensor, fed back to the display, and the test displacement is displayed in real time. It can realize the test of force setting value, positioning displacement, etc.
It can store the results of 10 test reference points, automatically calculate their average value, automatically grab the maximum value, and the force value when breaking.
The machine includes a thermal printer, which can automatically output test results.
Technical Parameter
| Load Capacity | 5-200kg |
| Force measuring accuracy | Within ± 1% of the indicated value |
| Display mode | Touch screen control |
| Unit switching | Kg,lb,N |
| Data sampling frequency | 200times/sec |
| Resolution of testing machine | The maximum load is 1/± 25000 yards, and the internal and external are not graded, and the overall resolution is unchanged |
| Load cell | Basic configuration: tension and compression sensors (maximum load) |
| Effective test width | 150mm |
| Stretch space effectively | 800mm |
| Test speed range | 50-300 mm/min stepless speed regulation and 5-gear constant speed (special test speed can also be customized according to customer requirements) |
| Displacement measurement accuracy | Within ± 1% of the indicated value |
| Breakpoint ratio setting | 0～99％,the user can set proper break down time according to different materials |
| Test bench safety device | Up and down stroke limiting device |
| Overload protection | The machine is automatically protected when the maximum load exceeds 10% |
| Fixture configuration | One set of stretching clamp |
| Machine size | Approx.500×400×1300mm |
| Machine weight | Approx.100Kg |
