Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-IPX7B |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | neogitable |
| Packaging Details: | plywood case |
| Delivery Time: | 10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 unit / month |
| Machine Size: | L960*D900*H1360mm(With Castors) | Inner Size: | L800*W800*H1200mm |
|---|---|---|---|
| Water Max.Depth: | 1.2m | Inner Thickness: | 1.5mm |
| Perspective Window: | Stalinite(Thickness：12mm) | Perspective Window Width: | 200mm |
| Water Level Control Mode: | Water/drain Valve By Manual Adjustment | Machine Material: | Stainless Steel 304# |
| Highlight: | Stainless Steel Water Immersion Test Machine,IPX7 Water Immersion Test Machine,IPX7 Waterproof Test Chamber |
||
Product Introduction
Test the product waterproof performance in the soaking environment (water depth 1 meters).
Through the test ,check whether the product waterproof level meet the requipments,so that the product
design, R & D and factory inspection use.

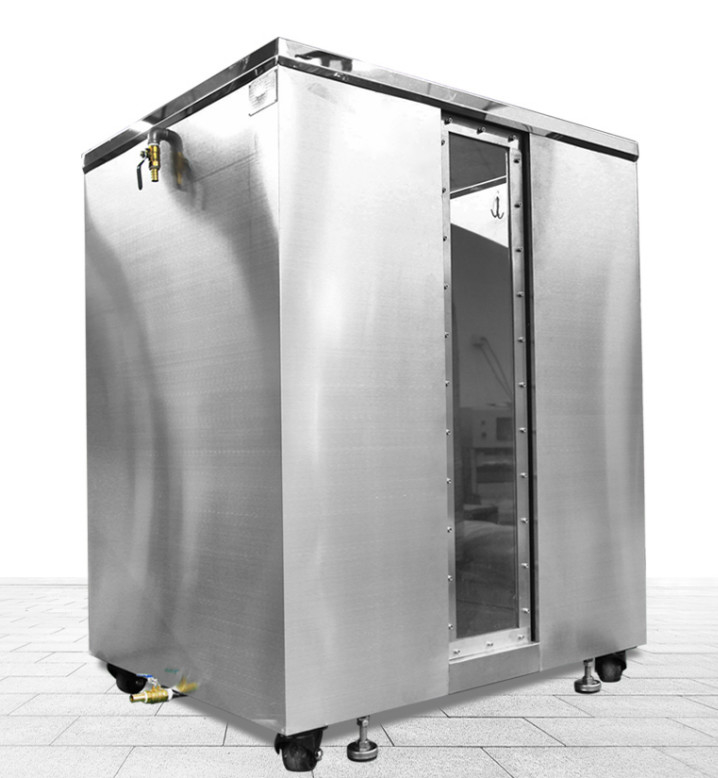

Characteristics
1, suitable for IPX7 waterproof grade test of the product.
2, this box allows the maximum water depth of 1.2 meters, the bottom area: 800*800mm. (Customizable)
3, double-layer structure: the inner layer of SUS304# stainless steel plate high-precision integral sub-arc welding forming, to ensure long-term use of no rust, no water; the middle of the two layers with 40 square steel reinforcement to keep the inner box will not be deformed;
C, the outer layer is welded with hairline stainless steel plate, the stainless steel plate is wrapped, the appearance has no solder joints, and the overall appearance is beautiful.
4. Install the water inlet and outlet pipes below the water tank.
5, the observation window is made of 12mm tempered glass bonding, can clearly observe the test situation of the sample.
6, stainless steel frame with load casters and foot cups, easy to move and fix.
7, stainless steel ruler accurately display water level.
A stainless steel hook is welded to the top of the inner box to facilitate users to take and place test samples.
Main Technical Parmeters
| Machine Size | L960*D900*H1360mm(With Castors) |
| Inner Size | L800*W800*H1200mm |
| Water Max.Depth | 1.2m |
| Inner Thickness | 1.5mm |
| Perspective Window | Stalinite(Thickness:12mm) |
| Perspective Window Width | 200mm |
| Water level control Mode | Water/drain valve by manual adjustment |
| Water Level Display | Stainless steel ruler(Accuracy 1mm),Horizontal visual |
| Machine Material | Stainless steel 304# |
More FAQ...
How do you test for IPX7?
Judgment method: soak the electronic products in IPX7 immersion test chamber with water depth of 1-1.2 meters for 30 minutes, and the electronic products are qualified if they have no harmful effects.
What is the IPX7 standard?
IPX7: IPX7 is one of the highest ratings, and ideally, it means that a device is durable enough to survive after being submerged in up to up to 3 feet of water for 30 minutes. IP57: IP57 indicates a high (though not the highest) level of protection from both dust and water exposure.
How long can IPX7 last?
These buds have an IPX7 rating, meaning they can endure up to 30 minutes in the water. Well, as long as they don't sink farther than one meter deep. If the buds were to sink beyond one meter, the water pressure might exceed what the internal gaskets can resist.
