Footwear Torsion Testing Machine Whole Shoes Torsion Test Equipment

Name: Footwear Torsion Testing Machine Whole Shoes Torsion Test Equipment
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-T12S
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-T12S
MOQ:	1 unit
Price:	negoitable
Payment Terms:	Western Union, MoneyGram, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

Test Capacity:

50N • M

Power Resolution:

1 / 50,000

Control System:

PLC Control

Heel Lifting Angle:

25 ± 0.5 ° (0 ~ 40 ° Can Be Set)

Torsion Angle:

~ ± 40 ° Can Be Set

Angle Resolution:

0.1 °

Speed:

0 ~ 5rad / Min Can Be Set

Volume:

1360 × 440 × 900mm

Weigh:

65kg

Power Supply:

220V 50Hz

Packaging Details:

plywood case

Highlight:

Whole Shoes Torsion Testing Machine

Footwear Torsion Testing Machine

Product Description

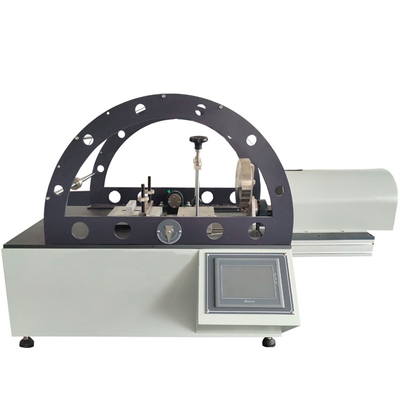

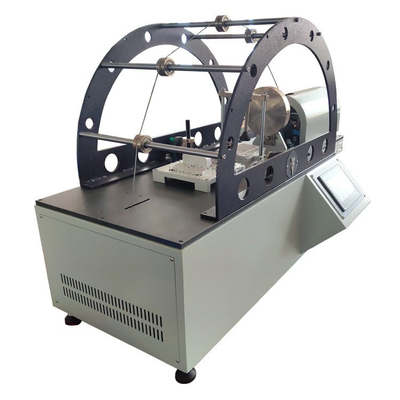

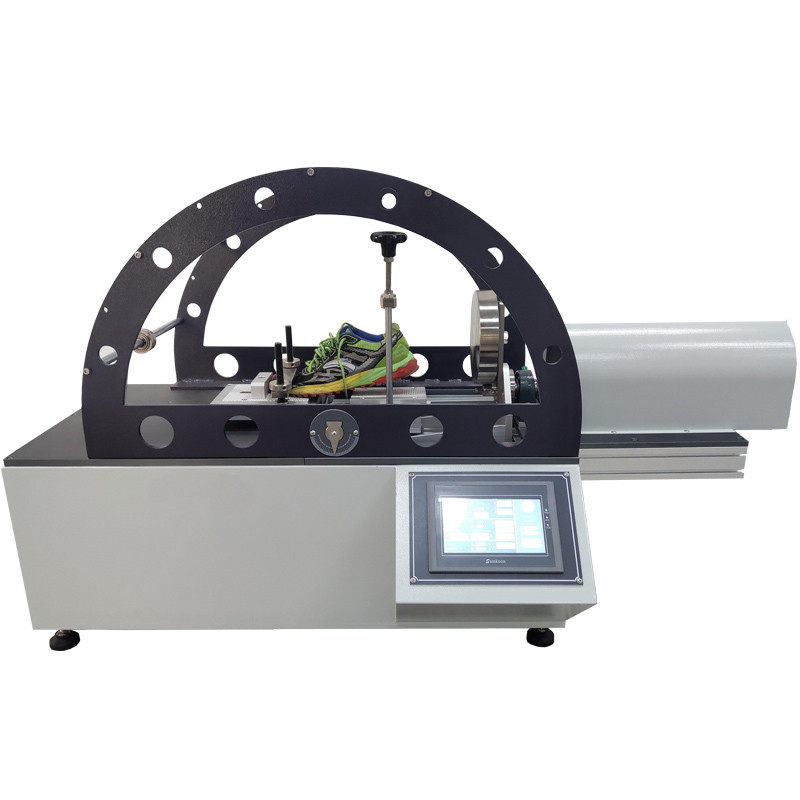

Footwear Torsion Testing Machine

Product introduction

This machine is mainly used to test all kinds of torsional strength tests of finished shoes.

lFix the sole on the test platform, adjust the position of the platform, use manual positioning to lift the shoe to a certain angle, and then twist the shoe to test the maximum torque experienced by the shoe during the test again.

Standard

GB/T 32024-2015.

Technical parameter

Test capacity	50N • m
Resolution	1 / 50,000
Control system	PLC control
Heel lifting angle	25 ± 0.5 ° (0 ~ 40 ° can be set)
Torsion angle	0 ~ ± 40 ° can be set
Angle resolution	0.1 °
Speed	0 ~ 5rad / min can be set
Volume	1360 × 440 × 900mm
Weight	65kg
Power supply	220V 50Hz
