16CFR 1615/16CFR 1616 Vertical Flammability Tester with 300x80mm Specimen and 40±2mm Flame Height for Textiles Flame Retardant Performance

Name: 16CFR 1615/16CFR 1616 Vertical Flammability Tester with 300x80mm Specimen and 40±2mm Flame Height for Textiles Flame Retardant Performance
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-F15
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
Model Number:	SL-F15
MOQ:	1 unit
Price:	neogitable
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1 unit / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Specimen:

300*80mm

Burner Nozzle Inner Diameter:

11 Mm

Flame Height:

40±2 Mm

Heavy Hammer:

54.5g/113.4g/226.8g/340.2g

Volume (WxDxH):

60x40x85cm

Weight (approx.):

≈35Kg

Packaging Details:

plywood case

Supply Ability:

1 unit / month

Highlight:

Temperature Measurement System Flammability Test Chamber

IEC60332-1-3 Flammability Test Chamber

Product Description

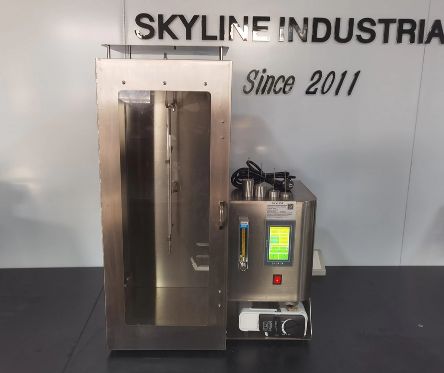

16CFR 1615/16CFR 1616 Vertical Combustion Test Machine Vertical Flammability Tester

Machine Introduction

This tester evaluates the flame retardant performance of various textiles including woven fabrics, knitted fabrics, coated products, and laminated products. It measures the tendency of textiles to continue burning, smolder, and carbonize after exposure to flame.

The sample is mounted in the sample holder and vertically suspended in the testing instrument. After exposure to a flame at the specified height for a set duration, the instrument records the sustained burning time, smolder burning time, and damage length to assess combustion performance.

Machine Parameters

Exhaust holes of the test chamber: 12.5mm in diameter, 16 at the top and 6 on each side at the lower part

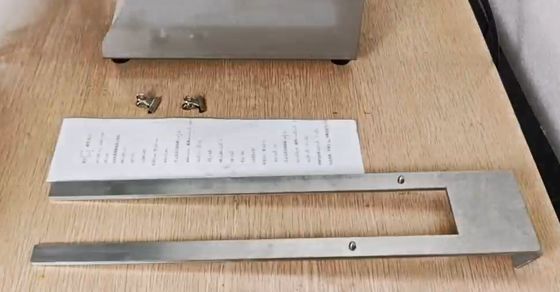

Sample holder: U-shaped, inner frame: 356mm x 51mm
Sample size: 300mm x 80mm
Sample quantity: 5 samples in each of the warp and weft directions parallel to the long side of the fabric
Distance between sample end and burner top: 17mm
Burner tube opening: Inner diameter 11mm
Nozzle angle: 25° to the vertical line
Flame height: 40±2mm
Flame burning time: 12 seconds
Combustion gas: Industrial propane gas or butane
Dimensions (WxDxH): 56cm x 40cm x 84cm
Weight: ≈35Kg
Power supply: 1∮ AC 220V 50Hz

Compliance Standards

16CFR 1615 (Size 0-6), 16CFR 1616 (Size 7-14) STANDARD FOR THE FLAMMABILITY OF CHILDREN'S SLEEPWEAR
