Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Skyline |
| Certification: | CE, Rosh, Calibration |
| Model Number: | SL-S34 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | plywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 15 sets per month |
| Small Stainless Steel Testing Frame: | 450X300X150mm | Inner Dimensions Of Backrest Frame: | 450±2×450±2mm |
|---|---|---|---|
| Inner Dimensions Of Chair Frame: | 450±2×300±2mm | Big Stainless Steel Testing Jig: | 450X450X300mm |
| The Airflow Of Butane: | 45 ± 2mL / Min（when 25℃) | Flame Height: | 35mm |
| Stainless Steel Combustion Tube Outer Diameter: | Outer Diameter: 8.0±0.1mm Inner Diameter: 6.5±0.1mm Length: 200+/-5mm | ||
| High Light: | Foam Testing BS 5852 Flammability Tester,Upholstered Furniture Testing Foam,BS 5852 Flammability Tester |
||

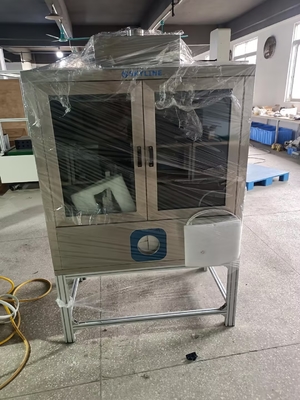

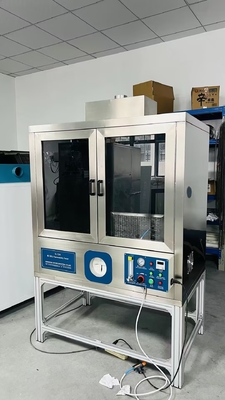

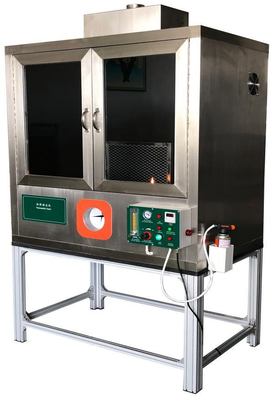

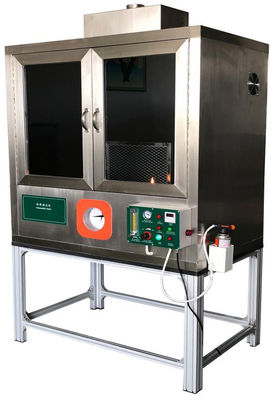

BS 5852 Flammability Tester
DESIGN PICTURE
Product introduction
This machine is used to simulate the ignitability of some special parts of furniture assembly placed in a certain sequence when ignited by a certain amount of heat, providing reference data for furniture design and manufacturing
Standard test BS 5852
Technical parameters
| Small stainless steel testing frame | 450X300X150mm |
| Inner dimensions of backrest frame | 450±2×300±2mm |
| Inner dimensions of chair frame | 450±2×150±2mm |
| Big stainless steel testing jig | 450X450X300mm |
| Inner dimensions of backrest frame | 450±2×450±2mm |
| Inner dimensions of chair frame | 450±2×300±2mm |
| The airflow of butane | 45 ± 2mL / min(when 25℃) |
| Flame height | 35mm |
| Stainless steel combustion tube outer diameter |
Outer diameter: 8.0±0.1mm Inner diameter: 6.5±0.1mm Length: 200+/-5mm |
| Optional Accessory | |
| No. 0 Fire source: Cigarettes |
Length:68mm Diameter:8mm Weight:1g combustion speed: 50mm/12.03min |
| White polyester cloth | BS 5852 |
| Wooden Frame | BS 5852 |
| No. 5 Wooden Frame | BS 5852 |
| No. 6 Wooden Frame | BS 5852 |
| No. 7 Wooden Frame | BS 5852 |
| Flame-retardant foam | BS 5852 |
| Combustible foam | BS 5852 |
| CaCI2.6H20 | BS 5852 |
| NaHCO3 | BS 5852 |
| Wetting agent | BS 5852 |
| Nozzles | BS 5852 |
