Name: DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-L45
Price: 4,500.00 USD
Availability: InStock

Home Products Leather Testing Equipment

DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-L45

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	Plywood case
Delivery Time:	15 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	1 pcs/ month

Contact Now

Detailed Product Description

Standards:	DIN53325, ISO3379	Measure Area:	Φ25mm
Testing Speed:	(12±2)mm/min	Weight:	45kg
Capacity:	1000N	Power Supply:	220V/110V, 50Hz/60Hz
Highlight:	ISO3379 Leather Testing Equipment , DIN53325 Leather Testing Equipment , Digital Leather Testing Equipment

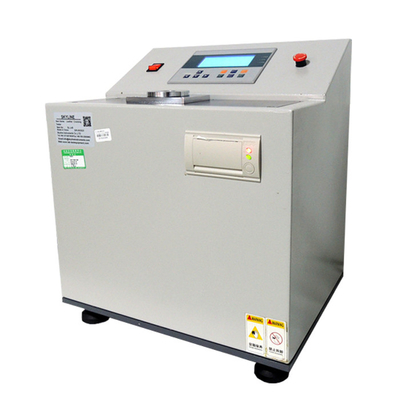

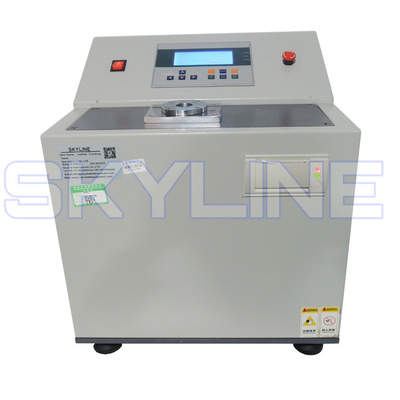

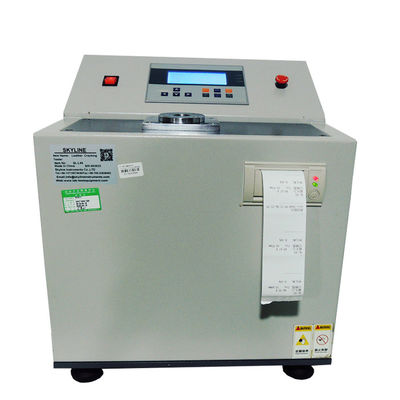

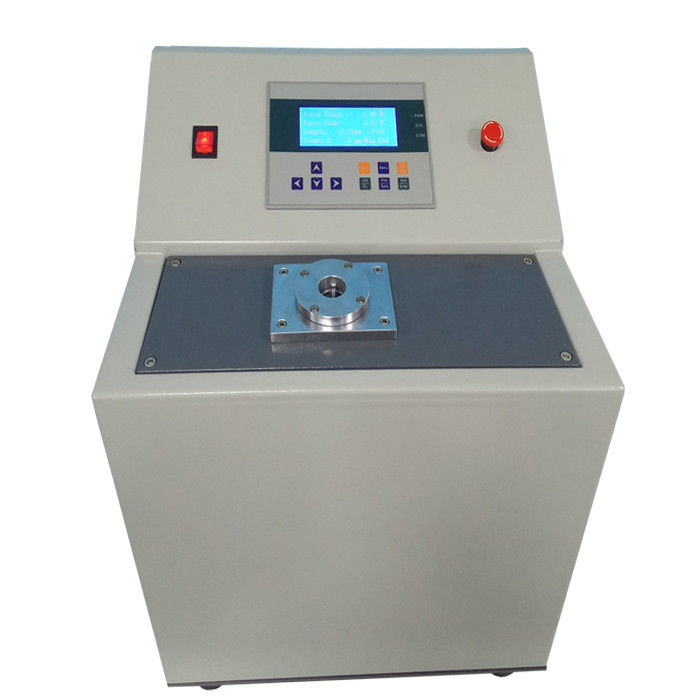

Leather Testing Equipment Leather Cracking Tester

Use

This instrument is used to test the anti-crack index of the upper, various thin leather and leather surface.

Principle

The instrument pushes the steel ball up from the inner side of the leather at a speed of 12 +/- 2 mm/min. When the leather surface is cracked, the height of the rise is the crack value.

Standard

DIN53325, ISO3379

Technical Parameters

Control System	LCD display
Unit switching	Kg, N, LBS
Diameter after sample fixation	Φ25mm
Steel ball diameter	Φ6.35mm
Force range	0~1000N
Force accuracy	±1%
Volume	443348
Weight	45kg
Power supply	1∮ AC 220V 2.5A or specified by country

Please review video of the Leather Cracking Tester operation as below link:

https://youtu.be/h-xz1cHB4IM

DIN53325 ISO3379 Leather Testing Equipment / Digital Leather Cracking Tester 0
