| Place of Origin: | China |
| Brand Name: | Skyline |
| Certification: | CE |
| Model Number: | SL-TL800-AO |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1 set machine wrapped by film and packed by standard woodern box |
| Delivery Time: | Approx. 30 Days |
| Payment Terms: | T/T before the shipment |
| Supply Ability: | 300 Sets/Month |
| Inner Size: | 800*800*1200mm | Machine Dimension: | 1200*1300*1500mm |
|---|---|---|---|
| Control Box: | Located At The Top Of The Machine, Easy To Operate. | Door: | Buckle: Single Door, 1 Set Of Patent Buckle |
| Inner Material: | RT ~ 300 ℃ Temperature Can Be Adjusted | Temperature Range: | 10% To 98% RH |
| Temperature Fluctuation: | ±3℃ | Temperature Uniformity: | ±3℃ (no Load) |
| High Light: | 800L Environmental Test aging Oven,800 Liters Aging Oven |
||

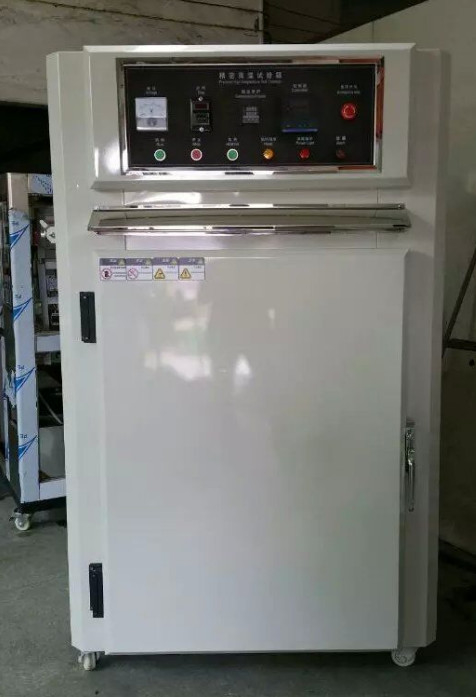

It is mainly used for rapid drying, drying, baking, heat treatment and high temperature aging test of products in production.
1. The baking process is well ventilated, evenly heated, the drying process is safe and reliable, and the drying process is without overheating or burning danger.
2. Drying parameters are easy to control, wide adjustable range, and high temperature control accuracy.
3. Drying process low energy consumption, effectively reduce operating costs.
4. Reduce labor intensity strong versatility strong versatility, reduce investment costs at the same time, improve the utilization rate and effective use of equipment.
5.It can be used with other test chambers for sample pretreatment.
| Mode | SL-TL800-AO |
| Inner Size | 800*800*1200mm |
| Machine Dimension | 1200*1300*1500mm |
| Control | Located at the top of the machine, easy to operate. |
| Door | Buckle: Single door, 1 set of patent buckle |
| Inner material | High quality stainless steel plate |
| Main material | High quality stainless steel plate |
| Temperature range | RT ~ 300 ℃ Temperature can be adjusted |
| Temperature fluctuation | ±3℃ |
| Temperature uniformity | ±3℃ (no load) |
| Heat insulation material | The inner liner is surrounded by 100mm thick zirconium type high temperature aluminum silicate thermal insulation rock wool, with double sealed high temperature resistant silica gel strip, so that the temperature outside the furnace is close to room temperature. |
| Door insulation material | High temperature heat resistant rock wool, equipped with silicone door, effectively prevent heat loss, keep the temperature stable, good energy saving effect. |
1. Air duct parts: Built-in Taiwan stainless steel with heat sink heater on both sides of the furnace cavity, the top of the furnace cavity adopts Taiwan Adlee air motor 2 long shaft motor 2HP, reduce noise; The interior is equipped with multi-wing wind wheel 10.5 "B direction, after dynamic balance correction and wind static pressure test, resonance test completed; Adopt the horizontal air supply circulation mode, the two-side circulation of large air volume to force the left and right air, the left blow, the right return air, so that the temperature in the furnace is more effective and uniform.
2. Furnace body outlet air path: high temperature resistant stainless steel plate
3. Air inlet and outlet: set on the left and right parts of the machine, diameter 50MM ", butterfly valve, can adjust the size of the air inlet
The environmental test chamber is packaged with a double-wall corrugated cardboard box, with bubble wrap and foam inserts for added protection.
The box is then sealed with heavy-duty tape to ensure that the chamber is secure during shipment.
Products are shipped via a reliable courier service, with the ability to track the shipment and provide delivery confirmation.
The chamber should be inspected upon arrival to ensure that it is not damaged during transportation.
