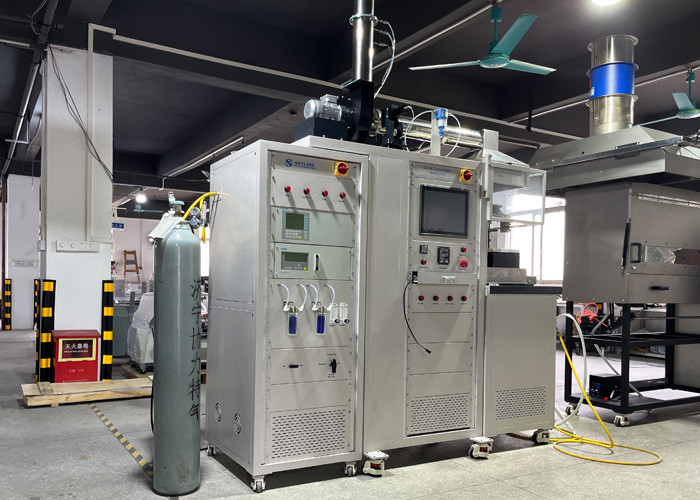

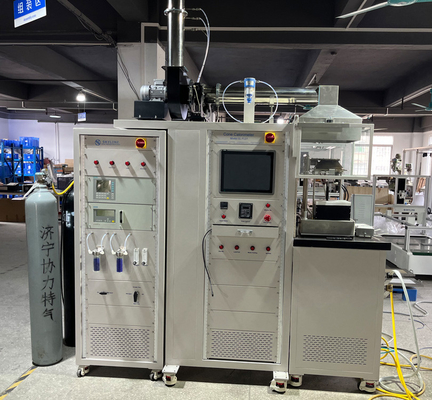

ISO 5660 Flammability Analyzer Cone Calorimeter For Laboratory

ISO 5660 Flammability Analyzer Cone Calorimeter For Laboratory

  • ISO 5660 Flammability Analyzer Cone Calorimeter For Laboratory
  • ISO 5660 Flammability Analyzer Cone Calorimeter For Laboratory
ISO 5660 Flammability Analyzer Cone Calorimeter For Laboratory
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-7601S
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: Plywood case
Delivery Time: 25 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
SKYLINE: Cone Calorimeter Standards: ISO 5660
Cone Heater Power: ≤5KW Heat Output Heat: 0~120KW/m2
Power Supply Voltage: AC220V AC 50Hz Timing Value Resolution: 1s Error <1s/n
High Light:

Flammability Analyzer Cone Calorimeter


ISO 5660 Laboratory Cone Calorimeter


5KW Cone Calorimeter

ISO5660 Cone Calorimeter Analysis Instrument For Heat Release

Product introduction
Cone Calorimeter measures heat release rate(H.R.R), smoke release, ignition time, oxygen consumption, carbon monoxide and carbon dioxide generation and mass loss rate when specimen is exposed to resource of conical heater.
This device is used to evaluate materials exposed to thermal radiation (typical radiation value 25, 35, 50KW/m2), ignited by an electric spark ignition device, and then measure the heat release rate of the material, the flue gas flow rate, and the C coefficient , Sample ignition time and extinguishing time, total oxygen consumption, total smoke generation, mass loss rate, total heat release, effective combustion heat, carbon dioxide generation and carbon monoxide generation.
Technical parameters

 Power supply voltage  AC220V AC 50Hz
 Maximum operating power  ≥5KW
 Cone heater power  ≤5KW
 Heat output heat  0~120KW/m2
 The maximum placement of the sample box  100mm × 100mm × 50mm
 Exhaust flow rate  0.012m3/s~0.035 m3/s (adjustable)
 Timing value resolution  1s error <1s/n
 Oxygen analysis  paramagnetic oxygen analyzer, concentration range 0-25%
 Smoke density analysis  (optional)
 Infrared analyzer  CO: 0-1% CO2: 0-10% (optional)


Product Features and Application
1.Cone Calorimeter with movable analysis cabinet, can be connected with a large heat release rate test system such as ISO 9705, EN 13823 etc, complied with ISO 5660, ASTM E1354,BS 476 Part 15 etc. testing standards.
2.Integrated test body and 19 inches analysis cabinet, embedded PC 15 Inch Touch screen computer, for the whole control and automatic testing.
3.Conical heater rated power 5000W, the heat output of 0 ~ 100kW/m2, using PID temperature controller, while the radiation cone can be horizontal or vertical.
4.Exposed to the central part of the surface of the sample 50 x 50mm range, radiation at the center of the deviation is not more than 2%.
5.The sample weighing range 0 ~ 3000g; accuracy: 0.1g.
6.Auto Split Shutter automatically opened to transmit radiation to the sample.
7.ABB EL3020 Paramagnetic oxygen analyzer, using the method of paramagnetic change to measure the concentration of oxygen in the gas. Concentration range of 0-25%.
8.Smoke density analysis using laser system, the system consists of a 0.5mW He Ne laser, the main detector and auxiliary detector.
The exhaust system consists of the fan, the smoke collection cover, the exhaust pipe and orifice plate flow meter and so on. Exhaust fan flow rate of 0 ~ 50g/s, precision 0.1g/s.
9.Ring sampler have been installed from the smoke collecting hood at 685 mm, with 12 holes.
10.The exhaust flow rate should be determined by measuring the pressure difference on both sides of the sharp edge orifice 350 mm above the fan, the inner diameter of the sharp
edge orifice plate is 57mm + 1mm.
11.ABB SCC-S Gas sampling system comprises sampling pump, filter, cold trap, waste water discharge, water filters and CO2 filters;
Portable water cooling system without need for waterworks and plumbing when using the Heat Flux meter (for ISO 5660).
12.In order to calibrate the response of the whole test system, the use of a square opening brass calibration burner, used to measure the value of C- coefficient.
13.The data acquisition system be able to record oxygen analyzer, orifice meter, thermocouple and other instruments of the output.

Application: Suitable for testing the heat release rate of building materials, Rail,Wire Cable
Product Details of the Cone Calorimeter
The name of Cone Calorimeter is derived from the conical heater as used by Dr. Vytenis Babrauskas to inspect test specimen (100mm x 100mm) with flux up to 100kW/m2 for the bench scale oxygen depletion of his development. Cone Calorimeter test is based on the theory that pure combustion calories are in proportion to a necessary amount of oxygen for combustion and 13.1 MJ/kg is generated whenever oxygen 1kg is consumed, and heat emission, ignition time, oxygen consumption, CO and CO2 generation, and flow of ignited gases as generated from test materials are measured.
ASTM:ASTM D6113,ASTM E1354,ASTM E1740,ASTM F1550
BS:BS 476-15
ISO:ISO 5660
EN:EN 45545-2: 2013
GB:GB/T 16172:2007

Installation Requirements
Electrical: 230 volts Nominal 50 Amps
Ambient Temperature: Operating 10°C to 35°C
Dimensions: Apparatus: 1800mm (W) x 900mm x (H) x 2600mm (D)
Gas Supplies:Methane, Nitrogen, Compressed Air

Cone Calorimeter.pdf
ISO 5660 Flammability Analyzer Cone Calorimeter For Laboratory 0
How does a cone calorimeter work?
The Cone is a fire testing tool based on the principle that the amount of heat released from a burning sample is directly related to the amount of oxygen consumed during the combustion. The amount of heat a material generates is directly aligned with the severity of a fire, such as fire growth rate.
