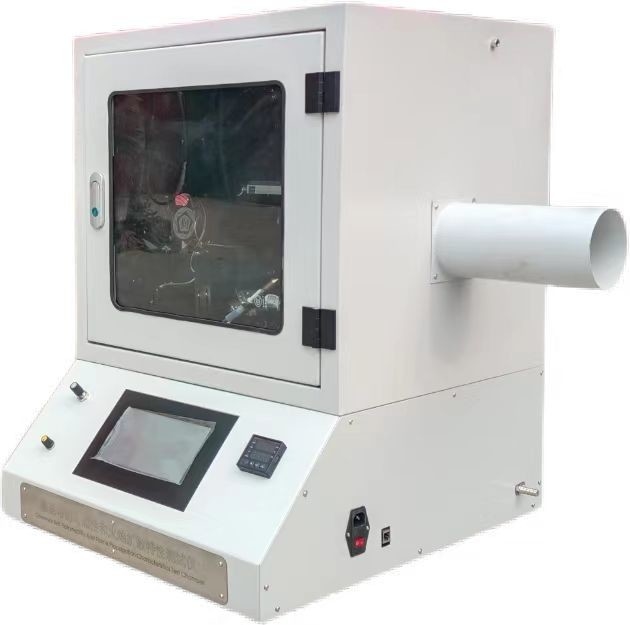

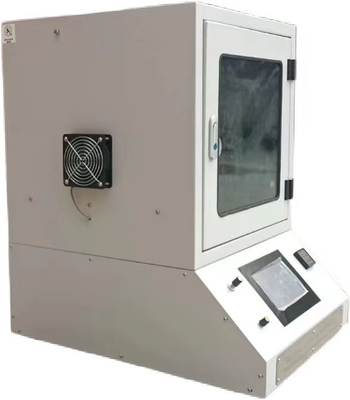

ISO 340 /AS1334.10 Conveyor Belt Vertical Burning Test Chamber 20cm Long Vent Tube With 10cm Diameter

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-FL856V

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiated
Packaging Details:	plywood case
Delivery Time:	10 working days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Contact Now

Detailed Product Description

Materails:	Steel	Standards:	ISO340
Bunsen Burner:	The Inner Diameter Is 10.5mm	Bunsen Burner Rotation Angle:	0°～45° Adjustable
Thermocouple:	Type K Armor	Thermocouple Display Range:	0～1300℃
High Light:	ISO 340 Vertical Burning Test Chamber , D 10cm Vertical Burning Test Chamber , AS1334.10 Conveyor Belt Test Chamber

ISO 340 Conveyor Belt Vertical Burning Test Chamber

1. Scope:
This tester is suitable for conveyor belts and steel cord conveyor belts with textile bodies, and is also suitable for testing the flammability and flame propagation characteristics of horizontally oriented conveyor belt samples;
2. Principle:
For a given period of time, the ends of the horizontally oriented conveyor belt specimens were exposed to flames, and the conveyor belt response to ignition sources was evaluated on a small scale. The duration of removal of the burner flame was measured, and after the flame died, a stream of air passed through the sample to measure the duration of afterglow.
3. According To The Standard:
This tester is produced according to the standards and requirements of AS 1334.10 1994 "Determination of Flammability and Flame Propagation Characteristics of Conveyor Belts" and ISO 340-2022 "Conveyor Belts - Laboratory Scale Flammability Characteristics - Requirements and Test Methods".
4. Relevant Definitions:
This test uses the following definitions:
1. Flame duration: after 60s, after the burner under the sample is removed, the sample continues to burn;
2. Afterglow: slow burning without flame;
3. Flame period: the total flame duration of a single group of tests;
4. Afterglow period: the total afterglow time of a single group of tests;
5. Acceptance test: a test in accordance with AS 1334.10 1994 to prove that the sample complies with its technical requirements;
6. Type certification: in accordance with AS 1334.10 1994 in order to comprehensively identify and evaluate product quality;
7. Vertical test: test according to ISO 340-2022,AS1334.10

Name: ISO 340 /AS1334.10 Conveyor Belt Vertical Burning Test Chamber 20cm Long Vent Tube With 10cm Diameter
Brand: SKYLINE
SKU: SL-FL856V
Rating: 4.8 (125 reviews)

Parameters

Items	Specification
Ignition time setting range	0～999.9s
Combustion timing range	0～999.9s
Bunsen burner	The inner diameter is 10.5mm
Bunsen burner rotation angle	45°~90°
Thermocouple	Type k armor
Thermocouple display range	0～1300℃
Test flame temperature	1000±20℃
Flame ruler	50～150/180mm
Combustion chamber dimensions	500mmx500mm×500mm
Combustion gas	Propane gas, purity > 95%
Volume (wxdxh)	555x651x738mm
Weight (approx.)	≈40kg
Power supply	Ac 220v±10%,50～60hz
