| Place of Origin: | CN |
| Brand Name: | SKYLINE |
| Certification: | SATRA TM 25, ISO 4643, ISO 2023, WTM 25; EN ISO 7854:1997; ISO 22288 |
| Model Number: | SL-L17 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negoitable |
| Packaging Details: | plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| SKYLINE: | Water Vapour Permibiality And Absorbancy Tester | Standards: | IUP 7; EN 13515; BS EN ISO 14268; IUP 15; EN 420, EN 20344, Satra TM 178, STM 9; STM 47; EN 13518; EN 12746 |
|---|---|---|---|
| Roller Diameter: | Roller Diameter (120 ± 1) Mm; Width (50 ± 1) Mm | Roller Width: | Width (50 ± 1) Mm |
| Sample Size: | (110 ± 1) Mm × (40 ± 1) Mm | Speed: | 20±1 Times/min |
| High Light: | lab water vapor permeability tester,SATRA TM172 water vapor permeability tester |
||

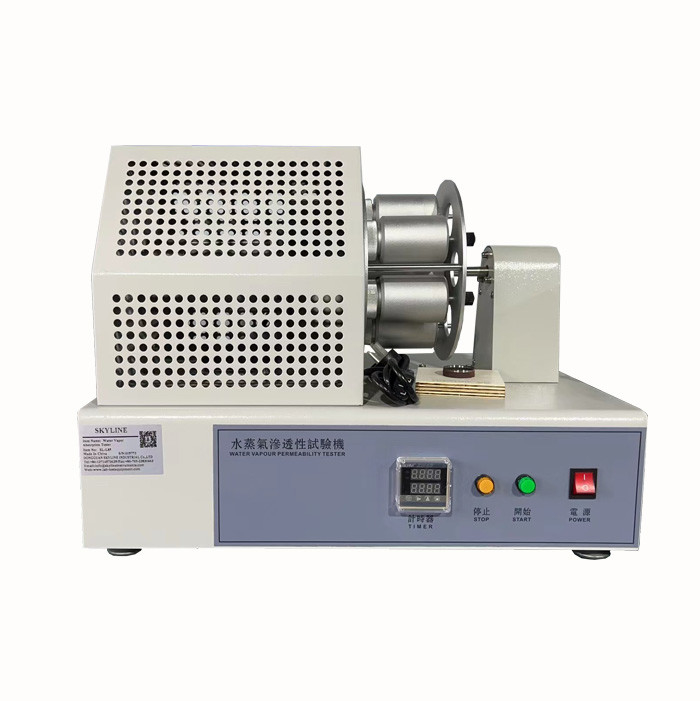

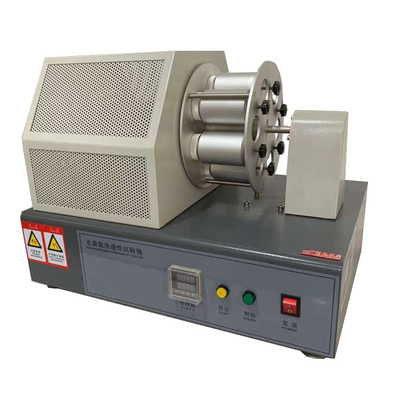

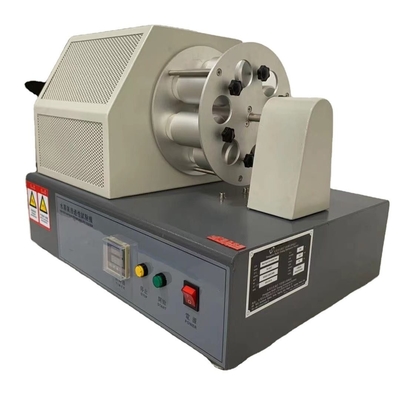

Leather Air Permeability Tester fix the circular test piece on the opening of a test bottle containing a certain amount of solid desiccant of the water vapor penetration testing machine, so as to use the test piece to separate the desiccant in the bottle from the air outside the bottle, and then turn on the water The vapor penetration tester rotates the test bottle and the fan that makes the air turbulence rotate. The continuously moving desiccant continuously absorbs the water vapor passing through the test piece. Within a certain period of time, the mass of the water vapor absorbed by the test bottle desiccant is weighed. To evaluate the water vapor permeability of the test material.
SATRA TM172,GB/T2099-2007 ,EN ISO 20344-2011,EN ISO17707,ENISO-20344,DIN53543
1.Body surface treatment: the use of U.S. DuPont powder, electrostatic spray paint process, high temperature 200 ℃ curing to ensure that the color does not fade.
2.Metal LED keys, waterproof, safe and durable, soft sight;
3.Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials;
4.Precision drive motor, smooth running, low noise;
5.With counting and timing self-stop function, set the test value can automatically stop the test;
6.High precision bearings, flat and stable rotation, long service life;
7.One-button full-automatic test, simple and convenient operation;
| Fan Speed | (1400±100)r/min |
| Bottle Diameter | (30±1)mm |
| Bottle speed | (75±5)r/min |
| Specimen can be tested at the distance from the mouth to the fan | (10±5)mm |
| Test sample | 6pcs |
| Voltage | AC220V±10% , 50Hz 10W |
| Size | 400×560×430mm |
| Weight | 23kg |
