| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-T07I |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | Plywood case |
| Delivery Time: | 30 working days |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 1 pcs/ month |
| SKYLINE: | Mattress Rollator Testing Machine | Controller: | PLC+ Touch Screen |
|---|---|---|---|
| Motor: | Sevro Actuator | Standard: | ASTM F1566, EN1957 |
| Stainless Steel Roller: | 52KG | Cylinder Weight: | 140 KG |
| Highlight: | EN 1957 Mattress Testing Machine,PLC Touch Screen Mattress Testing Machine,Servo Motor Mattress Testing Equipment |
||

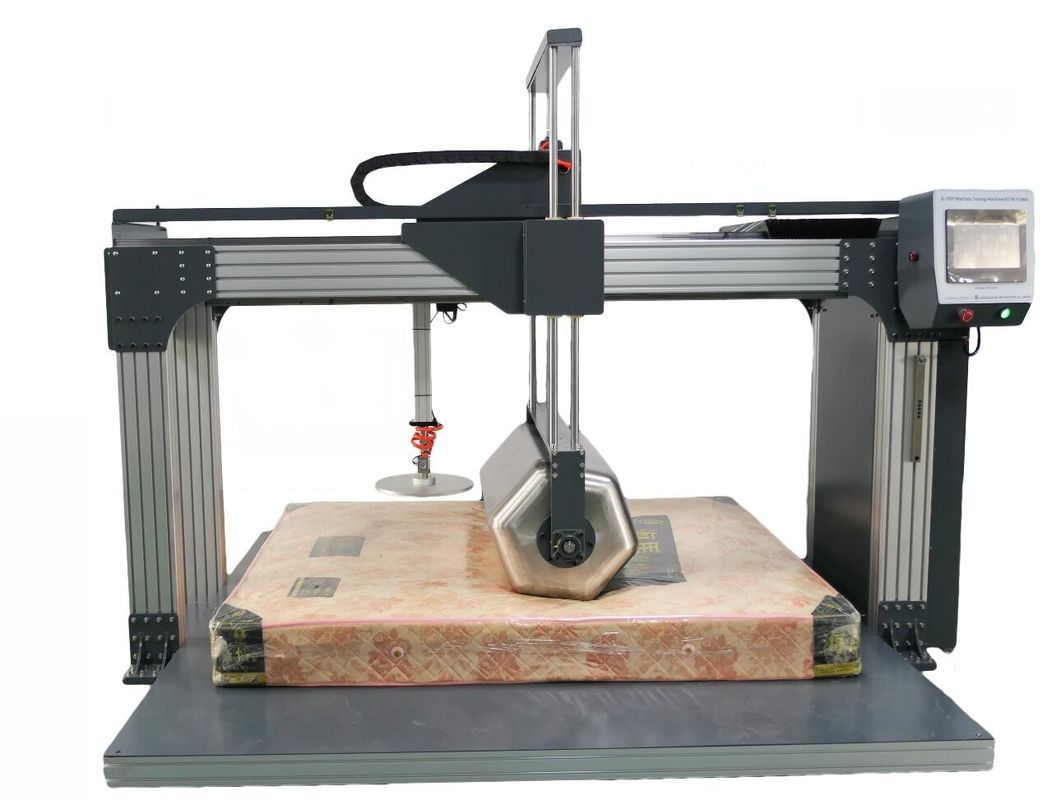

Product Information of Mattress Testing Machine
To determine the durability and hardness of any type of mattress and boxspring unit (regardless
of the materials) by simulating long term use condition.
New design Mattress Test Machine (Four in one)
It is more compact and smart than the old model with the following features:
Multi-function can do below testing:
a. Durability Testing of mattress surface
b. Hardness / Firmness Testing
c. Height loss measurement
d. Durability test for the edge of mattress
| Cylinder weight (EN1957) |
140kg, Length 1000mm,Diameter 300mm,R20mm |
| Maximum size of mattress | 2.2m×2.5m |
| Test speed | 0-20r/min |
| Control method | PLC+ touch screen |
| Dimension | 3000mm×1510mm×2010mm |
| Power | AC220V±10%, 50/60Hz, single phase |
| Accessory | One Hexagonal barrel, Cylinder Roller |
| According to different mattress to adjust the rolling stroke (adjust the limit switch position) | |
| Low coefficient of friction guide, ensure full drum weight on the mattress. | |
| LCD Touch Screen display provides easy control and setting | |
| The loading platen | 355 mm diameter, spherical curvature radius 800mm front edge curvature radius 20mm |
| The loading speed | 20 ~ 300mm/min |
| Test run | 500mm |
| Capacity | 200kg |
| The loading wheel position adjustment | About 300mm |
| The loading platen | 344 +/-5 mm diameter, 1mm radius bottom edge |
| The loading speed | 20 ~ 300mm/min |
| Test run | 500mm |
| Capacity | 200kg |
| The loading wheel position adjustment | About 300mm |
| Test load capacity | 1000N |
| Test Cycle | 5000 |
| Main time | Maintain for (3+/-1)s |
Testing Standards
EN1957
1. The whole machine frame made of high quality aluminum, with smart and elegant shape
2. Delta brand PLC and Servo Motors
3. Machine configuration two motors, one for the vertical direction of the roller, and the other is responsible for the horizontal direction of the drum drive, the two motors are used in DELTA servo motor
4. Machine configuration alarm device, indicating the safe operation
5. Electric lifts the Roller, easy to operate.
6.PLC controller with large colorful touch panel
7.Automatically stops after preset cycles completed
8.Over moving limit protection
9.Wooden roller softly contacts the surface of the mattress
The mattress durability tester is used for
Boxspring Mattresses
Innerspring Mattresses
Polyurethane Mattresses
Please review the video showing the machine how to work
