SATRA TM230 LCD Counter Footwear Testing Equipment For Water Penetration Flexing Test

Product Details:

Place of Origin:	CN
Brand Name:	SKYLINE
Certification:	CE
Model Number:	SL-C74

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	plywood case
Delivery Time:	15 work days
Payment Terms:	Western Union, MoneyGram, T/T

Contact Now

Detailed Product Description

SKYLINE:	Footwear Dynamic Water Proofness Tester	Test Quantity:	2 Sets
Flexing Angle:	25±2°	Flexing Speed:	60±6cpm
Counter:	LCD 0~999,999	Dimension （W×D×H）:	85×70×80cm
Weight (Approx):	240kg	Power:	1∮，AC220V,50/60Hz,3A
Highlight:	LCD Counter Footwear Testing Equipment , Water Penetration Flexing Footwear Testing Equipment , LCD Counter Footwear Testing Machine

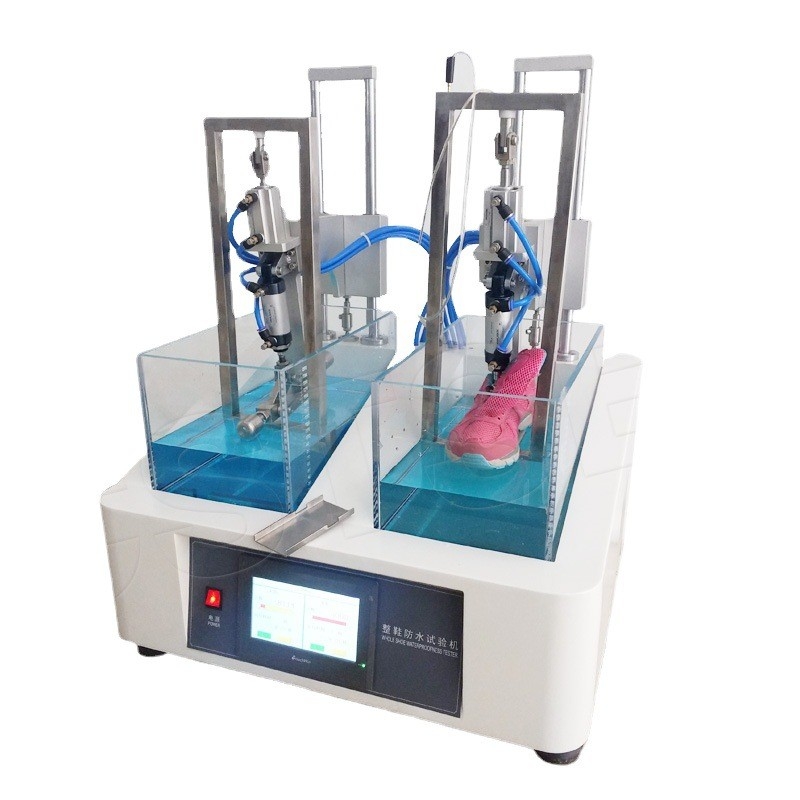

SATRA TM 230 Dynamic Footwear Water PenetrationTester

Name: SATRA TM230 LCD Counter Footwear Testing Equipment For Water Penetration Flexing Test
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-C74
Price: 4,500.00 USD
Availability: InStock

Product introduction

It is designed to determine the dynamic water resistance of all types of footwear.
The water tank is filled with a specified volume of colored water. A specimen is put on the artificial foot and flexed at a given angle and speed, and inspected at intervals for water penetration.

Principle

The water tank is filled with a specified volume of colored water. A specimen is put on the artificial foot and flexed at a given angle and speed, and inspected at intervals for water penetration.

Technical parameter

Control Mode	PLC Touch screen control
Test Quantity	2 Sets
Flexing Angle	25±2°
Flexing Speed	60±6cpm
Counter	0～999,999
Dimension(W×D×H)	85×70×80cm
Weight	240kg
Power	1∮,AC220V,50/60Hz,3A
