Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | CN |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-LB01 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negoitable |
| Packaging Details: | plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| SKYLINE: | Durability Testing Machine | Specimen: | 2 Pairs |
|---|---|---|---|
| Angle: | 0~80° Adjustable | Test Speed: | 100 ± 5 Cpm |
| Weight: | 188KG | Dimension: | 86x45x64 Cm |
| High Light: | adjustable angle shoes flexing tester,digital display shoes flexing tester |
||

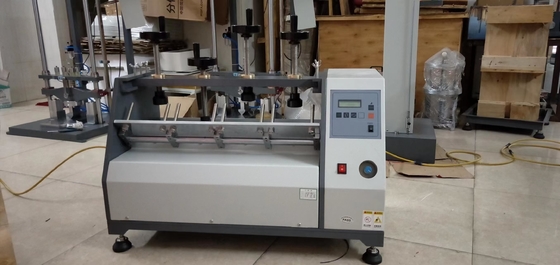

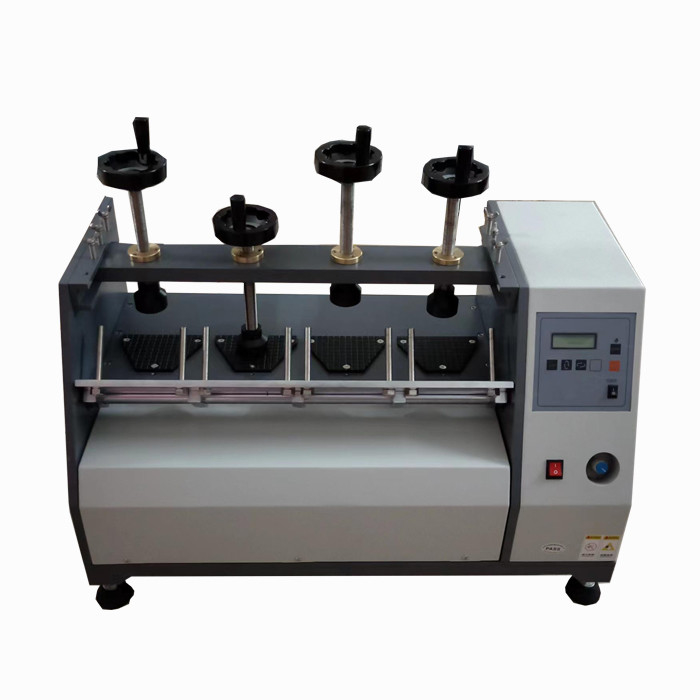

Finished Shoes Bending Fexing Tester Shoe Sole Fracture Resist Test Machine Finished Shoes Bending Flex Tester
Product description
The finished shoes will be installed on the finished shoes flexing tester, and the flexed part of the finished shoes will be driven by the finished shoes flexing tester to carry out repeated flexing with the angle of flexing matching the shoe type and the fixed rate of the flexing machine, and then the destruction of the flexed part of the finished shoes will be observed after reaching the pre-set time or completing the specified number of flexing times, and the damage of the finished shoes will be evaluated in terms of the number of completed flexing times without destroying the finished shoes, or the severity of the destruction of the finished shoes after completing the specified number of flexing times, to assess the flexing-resistant performance of the tested finished shoes
Technical parameter
| Test station | 4 finished shoes can be tested at the |
| Bending angle | (5 to 80). Adjustable |
| Bending rate | (5 to 150) r/min adjustable (digital display) |
| Allowable specimen length | 150 to 400mm |
| Volume | (86x45x64) cm |
| Motor | Variable frequency motor |
| Weight | about 188kg |
| Power | AC220V, 400W |
