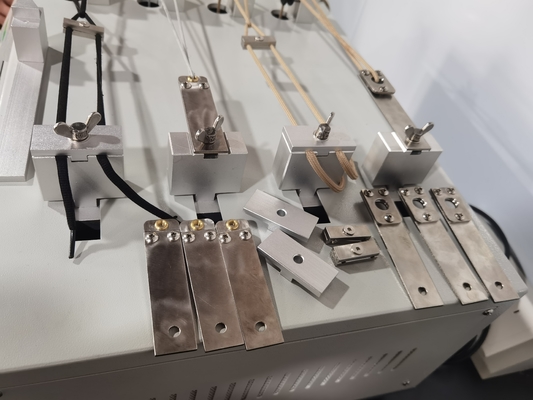

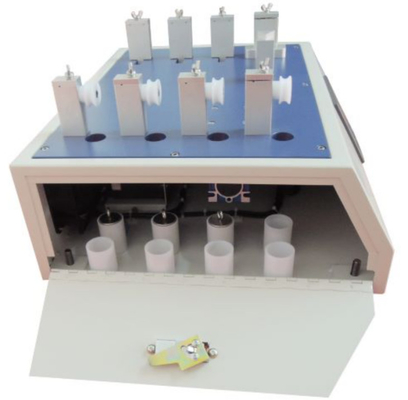

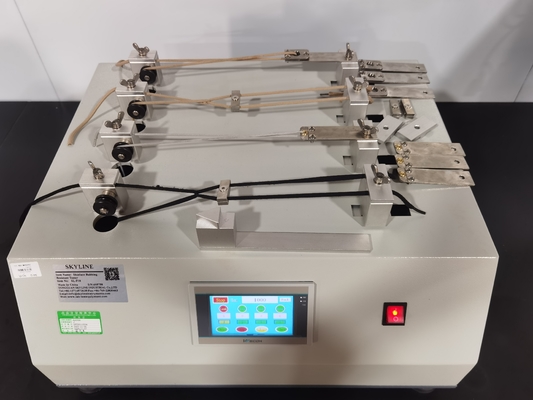

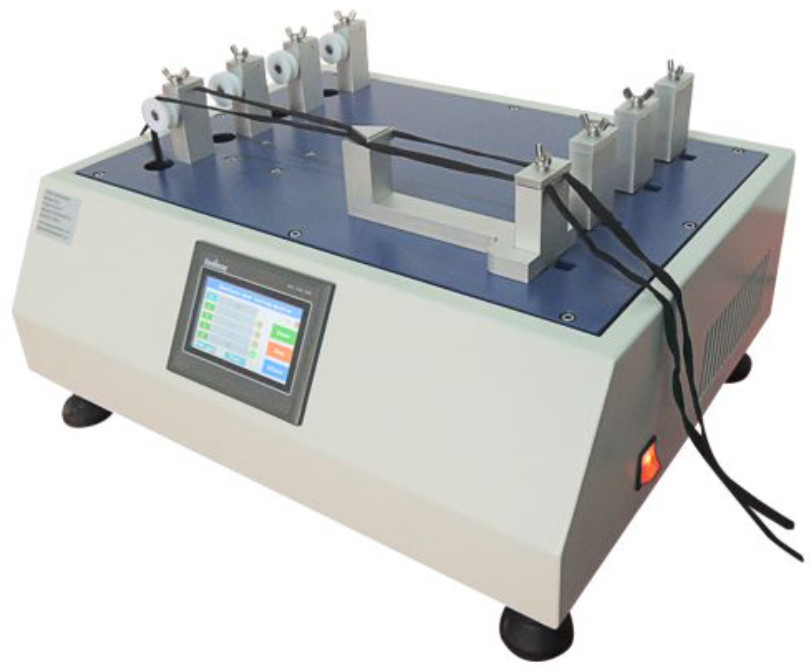

Shoe Lace To Eyelet Abrasion Test Machine With Touch Screen

Shoe Lace To Eyelet Abrasion Test Machine With Touch Screen

Shoe Lace To Eyelet Abrasion Test Machine With Touch Screen
Shoe Lace To Eyelet Abrasion Test Machine With Touch Screen
Shoe Lace To Eyelet Abrasion Test Machine With Touch Screen
Product Details:
Place of Origin: China
Brand Name: Skyline
Certification: CE, Rosh, Calibration
Model Number: SL-TL18
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
High Light:

footwear abrasion test machine

,

touch screen abrasion test machine

,

shoe lace to eyelet abrasion tester

Usage



Shoelace Rubbing Resistant Tester is suitable for all shoelaces wear resistance tests. Through the reciprocating motion of the movable gripper, the two shoelaces that cross each other horizontally are rubbed against each other to check the wear resistance. Four groups of samples can be tested at the same time without interfering with each other.





Standard



GB3903.36, ISO 22774:2004

method 1: lace to lace abrasion;

method 2: lace to standard eyelet abrasion;

method 3: lace to eyelet (from footwear) abrasion.



Test Method: SATRA TM154

Shoe lace to shoe lace and shoe lace to lace carrier abrasion





Technical parameters

Item Specification
Activity gripper and fixed gripper’s mini space 280 ±50 mm
Reciprocating stroke of activity gripper 35 ± 5 mm
Test Speed 60 ± 6 cycles/min
Gripper 4 Sets
Template Angle 52.5°, Length 190 mm
Metal strip W 25mm, L 60mm stainless steel
Weight 250 ± 3g, 4 pics
Counter Touch screen 0~999,999
Dimension 55 cm × 47 cm × 34 cm
Weight 43 kg
Power 1Phase 220V50HZ





Application



The shoelace installation method is as follows: take two shoelaces, hook the middle section to form the right one and the left one, and use the machine's right clamp (moving clamp) to clamp the two ends of the right belt naturally. The distance is 25MM, with the help of the sample gauge, make the right belt hook the left belt at 52.2°, the hook point is 120MM away from the coming point, and then clamp one end of the left belt with the left clamp (fixed clamp), and put the other end in the groove of the pulley , and suspend the weight below, the natural distance between the pinch point and the wheel groove is 35±5MM. During the test, the movable clamp reciprocates in a straight line from left to right at a constant speed, so that the middle sections of the two shoelaces rub against each other.
