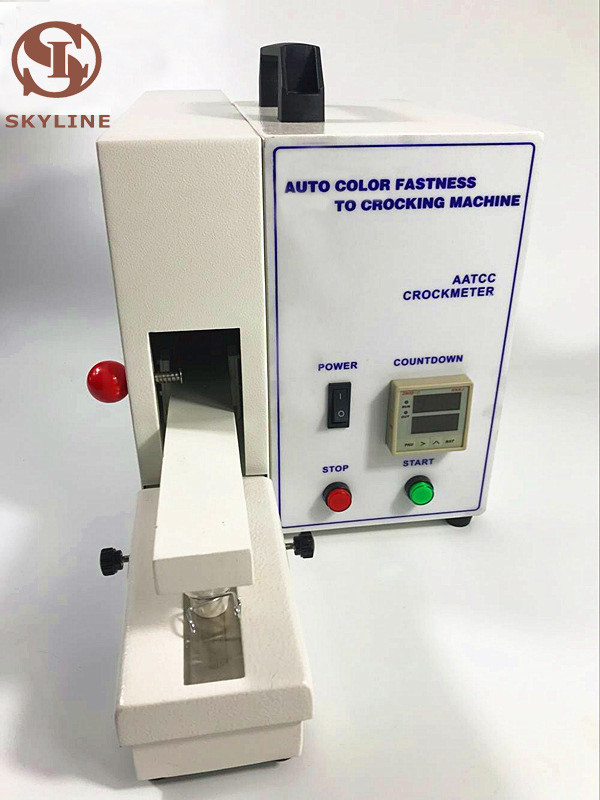

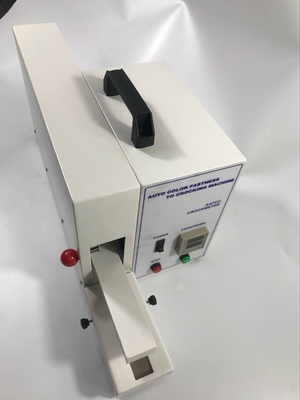

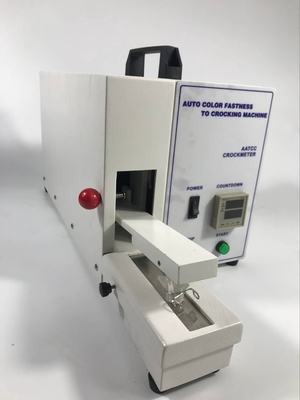

Electronic Textile Color Fastness Crockmeter 60 Times/Min 40W

Electronic Textile Color Fastness Crockmeter 60 Times/Min 40W

  • Electronic Textile Color Fastness Crockmeter 60 Times/Min 40W
  • Electronic Textile Color Fastness Crockmeter 60 Times/Min 40W
  • Electronic Textile Color Fastness Crockmeter 60 Times/Min 40W
Electronic Textile Color Fastness Crockmeter 60 Times/Min 40W
Product Details:
Place of Origin: Dongguan, Guangdong
Brand Name: SKYLINE
Certification: CE ISO
Model Number: SL-F165
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Plywood box
Delivery Time: 3-5days
Payment Terms: L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300Sets/Month
Contact Now
Detailed Product Description
Friction Head Pressure: 9±0.2N Friction Head: Round Φ16mm
Rectangular: 19 X 25.4 Mm Crank Turning Times:: 60 Times/min
Reciprocating Times:: 10 Times Friction Head Travel:: 104 + 3mm
The Sample Size And Thickness:: 220×110×5mm The Test Bench Liner Thickness: 0.25mm(water Resistant 600 Mesh Sandpaper)
Motor Power: 40W Dimensions: 760×270×240mm (L×W×H)
Voltage: AC220V, 50HZ Weight: About 20Kg
High Light:

Electronic Color Fastness Crockmeter

,

40W Color Fastness Crockmeter

,

Textile Color Fastness Crockmeter

AATCC Crockmeter Electric Rubbing Color Fastness Tester Textile Crockmeter



Equipment Overview Of Electronic Crockmeter
Electronic crockmeter / rubbing fastness tester  applies to textiles, knitted fabrics, leather, power of metal plates, printing and other industries. Evaluation of friction test for color fastness. Therefore available to the routine testing of production and scientific research

units and the development of standards. This instrument uses advanced technology, with automatic control

circuit, and is more advanced at home and abroad friction color fastness instrument. And versatile, reciprocating

frequency can be set.

Function:

To determine the colour fastness of textiles to dry or wet rubbing. A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results.this crockmeter Fitted with a pre-determined electronic counter for strokes up to 999,999 times

Standards :

ISO105-X12, GB/T3920/5712/420, AATCC8/165, BS1006D02

Technical parameters:

1, friction head pressure: 9±0.2N
2, friction head: round Φ16mm;Rectangular 19 x 25.4 mm
3, crank turning times: 60 times/min
4. Reciprocating times: 10 times
5, friction head travel: 104 + 3mm
6, the sample size and thickness: 220×110×5mm
7, the test bench liner thickness of 0.25mm(water resistant 600 mesh sandpaper)
8. Motor power: 40W
9, Dimensions: 760×270×240mm (L×W×H)
10. Voltage: AC220V, 50HZ
11, instrument weight: about 20Kg





Operation steps


1.1 Specimen preparation
1.1 The specimen and the standard rubbing cloth should be humidified in a constant temperature and humidity environment.
1.2 When the specimen has multiple colors, all colors should be rubbed to.
1.3 If the area of various colors is large enough, the sample must be taken separately.
1.4 Cut the sample, respectively, dry rubbing and wet rubbing, should ensure that the rubbing to all the colors.
1.5 If the front and back of the sample is made of different materials, colors, front and back to do rubbing color fastness test.
1.6 Do dry, wet rubbing fastness should not be repeated in the same part of the specimen.
2. Dry rubbing
2.1 The specimen will be laid flat on the abrasive instrument with sandpaper, so that the length direction of the specimen and the direction of the dynamic range of the instrument and fix the specimen in the pressure plate, the clamp sample should be flat.
2.2 Fix the standard abrasive small white cloth on the abrasive head, clamp with spring clip, and put the abrasive head lightly on the specimen
2. 3 should ensure that the specimen does not slide or wrinkle when rubbing.
2.4 Place the friction head on the specimen. Turn on the power and turn on the POWER button. Set the number of tests.
2.5 Press the START key to start the test. When the number of tests reaches the set value, the instrument automatically stops
2.6 Remove the standard rubbing white cotton cloth and use the colorimetric card for comparison rating.



3. Wet rubbing
3. 1 completely wet the standard rubbing small white cloth in distilled water.
3.2 Remove and squeeze it in the filter paper so that it has a certain water content.
3. 3 The remaining steps are the same as the above dry rubbing test steps.

4. Results processing
4.1 Before grading, use transparent glue to gently stick away the loose lint on the white cloth.
4.2 Use three layers of unused rubbing white cloth under the rubbing white cloth to be evaluated, refer to the standard staining gray card to evaluate the staining grade of the rubbing white cloth.



5. Test report
5.1 Report the standard method
5.2 Report the dry rubbing and wet rubbing results respectively.
