| Place of Origin: | China |
| Brand Name: | Skyline |
| Certification: | ISO |
| Model Number: | Lab Testing Equipment |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | polywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1 pcs per month |
| Machine Size: | 40×40×70cm | Load Accuracy: | Grade 0.5 |
|---|---|---|---|
| Test Width: | 400mm | Test Speed Range: | 0.1～500mm/min |
| Test Stroke: | 400,500,600mm | Temperature Range: | Min.-40℃~Max.150℃ |
| Cooling Speed: | >1℃/Min | Power: | 1∮,AC220V,50~60Hz |
| High Light: | Servo Motor Universal Tensile Testing Machine,500mm/min Laboratory Test Equipment,Servo Motor Tensile Testing Machine |
||

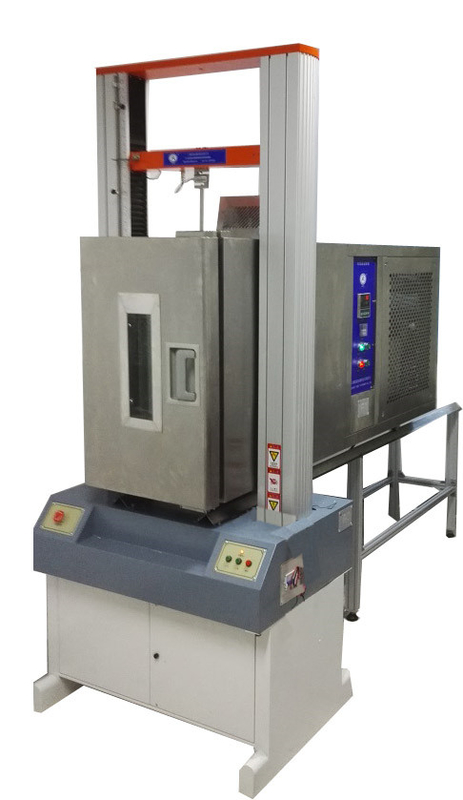

This tester is mainly applicable to the tensile, compression, bending, peeling, tearing, shearing and other mechanical properties of rubber, plastic profiles, plastic pipes, plates, sheets, films, wires and cables, waterproof coiled materials, metal wires and other materials under high or low temperature environment; It is very convenient for users to carry out R&D and quality control. It is an ideal testing instrument for industrial and mining enterprises, commodity inspection arbitration, scientific research institutions, colleges and universities, engineering quality and other departments.
| Capicity | 2,5,10,20,50,100,200,500,1000,2000kg |
| Unit selection | kg,N,LB |
| Display device | Full computer control |
| Load decomposition degree | 1/100,000 |
| Load accuracy | ≤0.5% |
| Test speed | 0.1~500mm/min |
| Test stroke | 400,500,600mm |
| `Test width | 40cm |
| Machine test space | (L×W×H)40×40×70cm |
| Power system | Servo motor+drive |
| Transmission mode | high-precision ball screw |
| `Use power | 1∮,AC220V,50~60Hz |
| Temperature range | Min.-40℃~Max.150℃ |
| Control mode | P. I.D. Automatic temperature calculation |
| Cooling compressor | Single stage totally enclosed original compressor |
| Cooling speed | >1℃/Min |
| Timer | LED,0~9999h99min |
| Inner box material | SUS # 304, mirror stainless steel plate |
| Outer box material | Sand grain stainless steel plate |
| Thermal insulation layer | High-density rigid PU foam and 24K glass wool |
| Travel protection | Mechanical and computer dual protection to prevent exceeding the preset travel |
| Power protection | Can be set systematically |
| Emergency stop device | Capable of handling emergencies |
| Temperature rise preventer | Protect the tested object and test box |
| High speed circuit protector | Protect heating circuit |
| Motor (blower and refrigerator) | Overload thermal relay (to protect blower and refrigerator from overload) |
| Refrigerant high-pressure protection switch | Protect the compressor and prolong its service life |
| Circuit breaker protector: | Compressor protection, service life extension compressor, overload protection switch, ultra-high temperature overload protection switch, water shortage protection device |
