Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Skyline |
| Certification: | ISO |
| Model Number: | Lab Testing Equipment |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | polywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Test Space: | 15m | Range: | 1000KN |
|---|---|---|---|
| Measuring Range: | 10~1000KN | Accuracy Level: | Grade 1 |
| Piston Stroke: | 1000mm | Cylinder Diameter: | 280mm |
| High Light: | 1000kN Horizontal Tensile Testing Machine,ISO Horizontal Tensile Testing Machine,100mm/min Horizontal Tensile Tester |
||

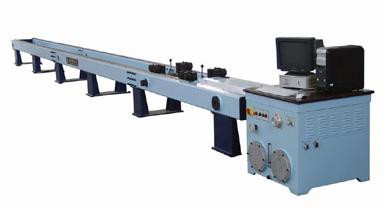

The microcomputer controlled horizontal tensile testing machine adopts the characteristics of hydraulic force application, computer automatic data collection, printing results, convenient operation, high test accuracy, and stable force application. It can be used for tensile, tensile shear, tear and other mechanical properties tests of metal, non-metal and other materials, and can meet various test methods and standards such as ISO, GB. This equipment is widely used in wire and cable industry and quality inspection institutions at all levels.
| Range | 1000kN |
| Resolving power | 1/250000 |
| Measuring range | 10kN－1000kN |
| Indication accuracy level | Grade 1 |
| Piston stroke | 1000mm |
| Displacement measurement range | 0-1000mm |
| Displacement resolution | 0.007mm |
| Displacement accuracy | ±1％ |
| Test speed range | 0.5-100mm/min |
| System working pressure | 20MPa |
| Cylinder diameter | 280mm |
| Motor power | 5.5kW |
| Maximum test space | 15m |
