Home Products Tensile Strength Testing Machine

Electro Hydraulic Servo Hydraulic Universal Lab Testing Equipment Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Skyline
Certification:	ISO
Model Number:	Lab Testing Equipment

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	polywood case
Delivery Time:	15 working days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Maxium Load(kg):	1000,3000,6000,10000,20000kg	Stretch Length(mm):	560,620,690,620,800mm
Compress Space(mm):	530,550,620,580,300	Clamping Width:	70,75,80,120
Effective Distance:	460,495,570,600,850	Weight:	1500,2000,2100,3300kg
High Light:	Electro Hydraulic Lab Testing Equipment , Servo Hydraulic Lab Testing Equipment

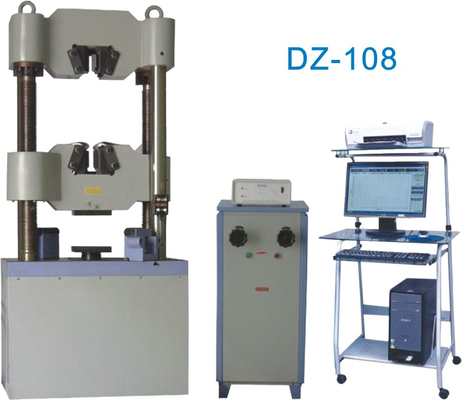

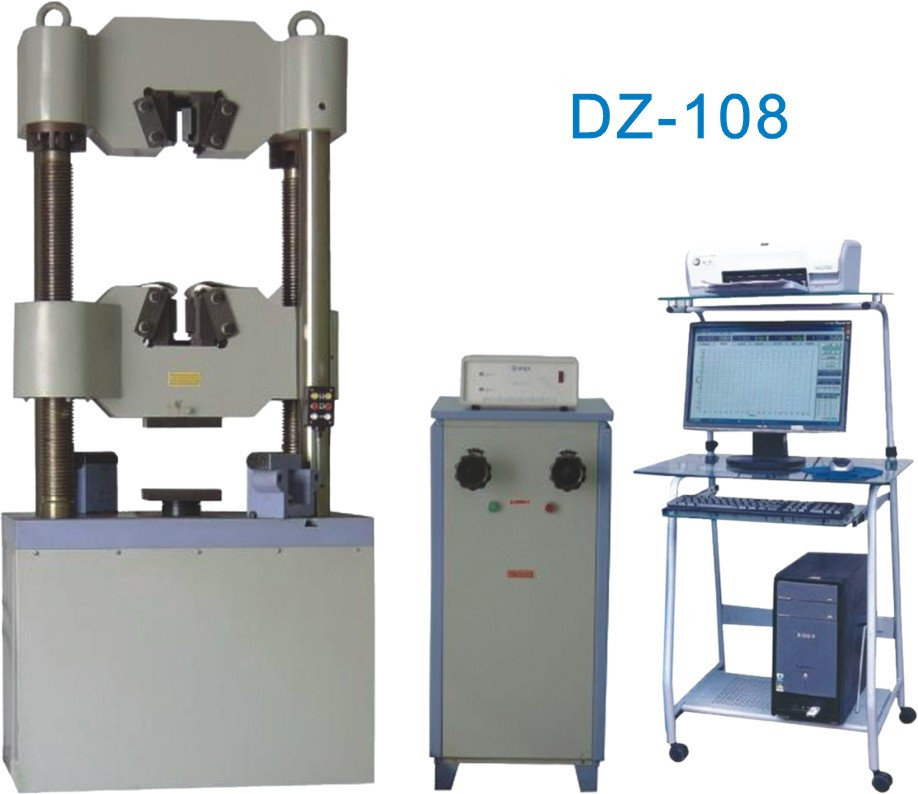

Electro Hydraulic Servo Hydraulic Universal Testing Machine

Name: Electro Hydraulic Servo Hydraulic Universal Lab Testing Equipment Testing Machine
Brand: Skyline
SKU: Lab Testing Equipment
Rating: 4.7 (180 reviews)

Description of lab testing equipment:

This series of products are mainly used for tensile, compression, bending, shearing, peeling, tearing and other mechanical property tests of metal and non-metallic materials.
This series of products are of oil cylinder lower position, double space frame structure, automatic adjustment of tension and compression spacing, hydraulic automatic fixture, and manual and automatic control modes. The control unit is composed of computer and electro-hydraulic servo control system, with stress, strain and displacement control modes. The test data can be accessed at will, and reanalysis of data and curves can be realized, local amplification and data re editing can be realized, samples, environment and test conditions can be programmed, and various mechanical property indexes of materials can be automatically calculated, and complete test reports and curves can be printed.
This series of products fully meet the requirements of GB/T2611-92, GB/T16826-1997 and GB/T228-2002.

Technical parameter:

NO. Type	DZS-100	DZS-300	DZS-600	DZS-1000	DZS-2000
Maxium Load(kg)	1000	3000	6000	10000	20000
Stretch length(mm)	560	620	690	620	800
Compress space(mm)	530	550	620	580	300
Effective distance between columns(mm)	460	495	570	600	850
Clamping diameter of round specimen(mm)	6-22	10-32	13-40	14-45	20-80
Clamping thickness of plate specimen(mm)	0-15	0-15	0-30	0-40	10-60
Clamping width of plate specimen(mm)	70	70	75	80	120
Distance between two supporting points in bending test(mm)	30-450	100-320	100-500	100-500	100-500
Machine size(mm)	700×450×1780	800×500×1950	950×630×2265	980×650×2220	1160×1000×2600
Console(mm)	650×150×1100
Weight(kg)	1500	2000	2100	3300
