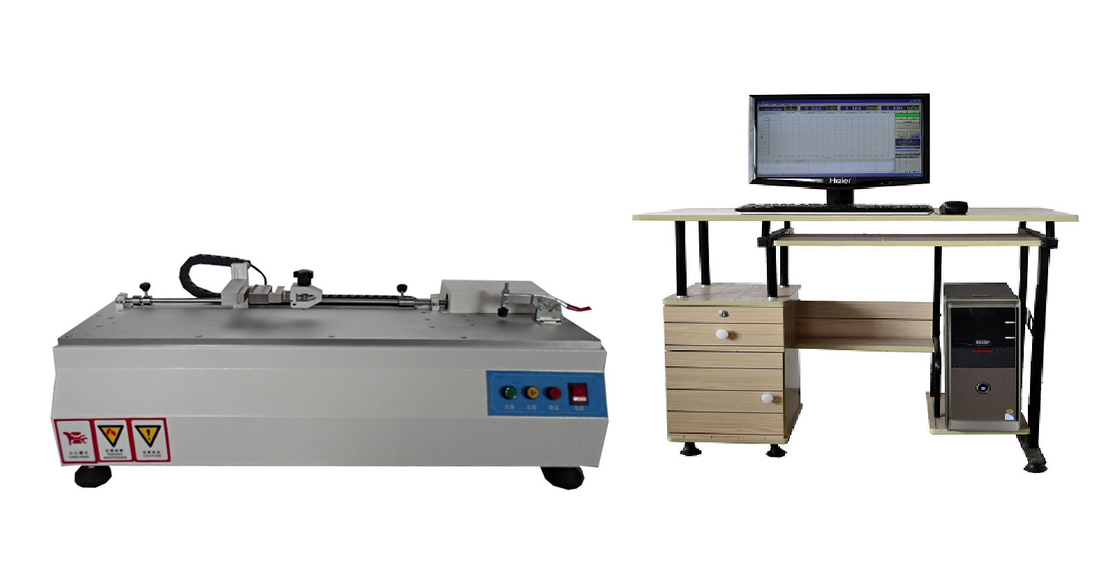

Servo System Horizontal Lab Testing Equipment Tensile Testing Machine

Servo System Horizontal Lab Testing Equipment Tensile Testing Machine

  • Servo System Horizontal Lab Testing Equipment Tensile Testing Machine
Servo System Horizontal Lab Testing Equipment Tensile Testing Machine
Product Details:
Place of Origin: China
Brand Name: Skyline
Certification: ISO
Model Number: Lab Testing Equipment
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: polywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 pcs per month
Contact Now
Detailed Product Description
Machine Size: 800 X 300 X 300mm Machine Weight: 100kg
Test Width: 140mm Test Stroke: 500mm
Test Speed Range: 0~500 Mm/min Power: 180W
Power Supply: 220V 50/60HZ 5A Power Accuracy: 0.5%
High Light:

servo horizontal tensile testing machine

,

500mm/min horizontal tensile testing machine

Servo System Horizontal Tensile Testing Machine

Application of lab testing equipment:

This machine is developed and designed for tape stripping test. It is controlled by a microcomputer chip and can be used to test the tensile force and stripping force of materials. It is fully computer operated and has automatic reset function. The test software can output test figures and tables as the basis for material testing.

Software function:

The measurement and control system is specially designed for the microcomputer electronic universal testing machine. Tensile, compression, bending, shearing, tearing and peeling tests can be conducted. PC and interface board are used to collect, save, process and print test results. The maximum force, yield force, average peel force, maximum deformation, yield point, elastic modulus and other parameters can be calculated; It can perform curve processing, multi-sensor support, graphical and image-based interface, flexible data processing, and database support, making the system more powerful.

Compliance with standards:

GB/T2792,ASTM D3330,GB2792-81

Technical parameter:

Capacity selection: 50N,100N,200N,500N can be  selected
Monitor: Computer display mode
Power resolution: 1/250,000
Power accuracy: 0.5%
Travel resolution: 1/250,000
Control mode Full computer operation mode
Test stroke: 500mm
Test width: φ140mm
Test speed: 0~500mm/min
Power unit conversion: kgf,N,Ibf,g,ton,Mpa
Shutdown mode: Overload stop, emergency stop button, automatic stop when the test piece is damaged, automatic stop when the upper and lower limits are set, and automatic reset function
Size: 800 x 300 x 300mm (W×D×H)
Machine power: Japan Tamagawa servo motor drive, synchronous wheel and precision ball screw drive
Power: 180W
Weight: 100kg
Power supply: 220V 50/60HZ 5A
Standard configuration 1 set of clamps, computer software and data lines
