| Place of Origin: | China |
| Brand Name: | Skyline |
| Certification: | ISO |
| Model Number: | Lab Testing Equipment |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | polywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Machine Weight: | 150kg | Machine Size: | 550×420×1800mm |
|---|---|---|---|
| Machine Load: | 100N,200N,500N,1KN,2KN,5KN | Accuracy Grade: | Grade 1 |
| Test Width: | 150mm | Stretch Width: | 800mm |
| High Light: | Single Column Tensile Tester,5kN Tensile Tester,500mm/min Tensile Testing Machine |
||

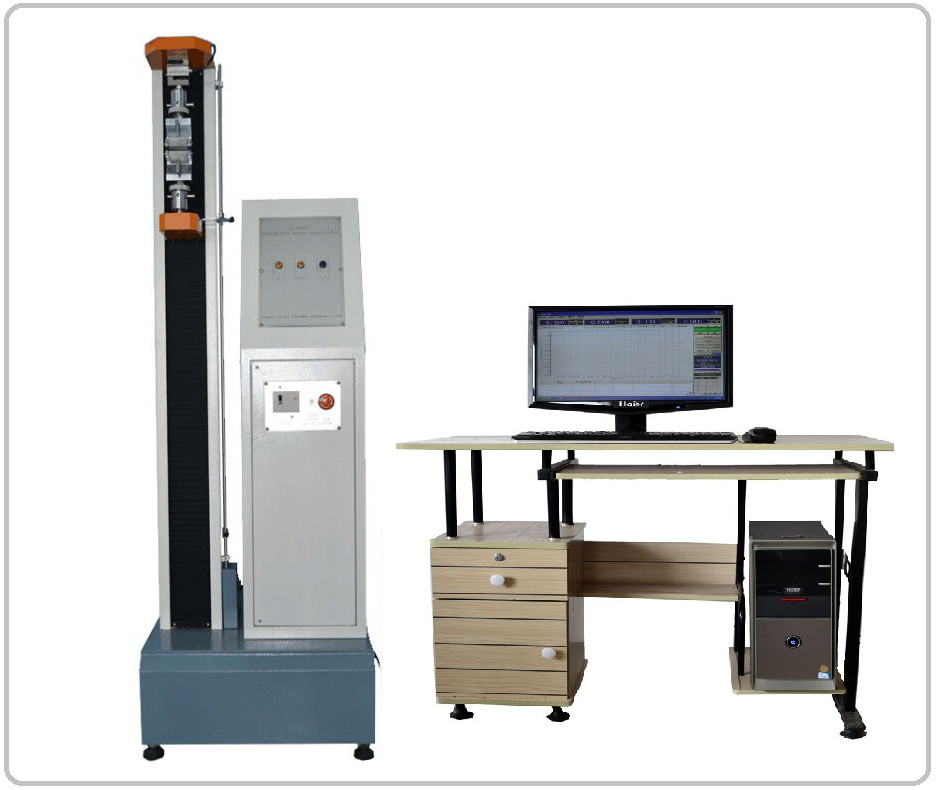

DZ series computerized tensile testing machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has a wide and accurate loading speed and force measuring range, and has a high accuracy and sensitivity for the measurement and control of load, deformation and displacement. This series of models adopts a single space structure, with the test space in the lower space. It is mainly applicable to the test of metal and non-metallic materials with a test load of less than 5kN. It has a stress, strain The displacement control mode can calculate the maximum force, tensile strength, bending strength, compression strength, elastic modulus, elongation at break, yield strength and other parameters.
major function
DZ series computerized tensile testing machine is suitable for testing and analyzing the mechanical properties of rubber, tire, rubber tube, tape, sole, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum plastic pipe, composite material, waterproof material, fiber, textile, wire and cable, paper, gold foil, tape, silk thread, spring, wood, medical packaging materials, tape, etc., such as tensile, compression, tearing, peeling (both 90 degrees and 180 degrees).
1. The motor+frequency converter or servo motor+drive is used to drive the beam up and down through the transmission mechanism to achieve the test loading process.
2. The whole control system has high cost performance and high reliability.
3. Microcomputer is used to control the whole test process, and real-time dynamic display of load value, displacement value, deformation value, test speed and test curve.
4. The microcomputer is used for data processing and analysis, and the test results can be saved automatically. After the test, the test curve can be recalled, and the test process can be reproduced through curve traversal, or curve comparison and curve amplification can be performed.
5. The test software under Windows platform in full Chinese has strong data and graphics processing functions, and can print complete test reports and test curves in real time.
6. It has perfect safety protection functions such as limit protection, overload protection and emergency stop.
Meet the standard:
GB/T16491-1996 Electronic Universal Testing Machine
The computerized tensile testing machine is widely used in wire and cable, hardware, footwear, electronic appliances, packaging and printing, medical equipment, auto parts, textile and leather, clothing and footwear, rubber and plastic products, colleges and universities; Scientific Research Laboratory; Commodity inspection arbitration, technical supervision departments and other industries are the basic equipment for quality management and physical property testing
| Maxium Load | 100N,200N,500N,1KN,2KN,5KN can be selected |
| Accuracy grade | Grade 1 |
| Effective force measuring range | 0.2％～100％(Grade 1) |
| Force measuring accuracy | Within ± 1% of the indicated value |
| Resolution of testing machine | The maximum load is 1/ 200000 yards, and the internal and external are not graded, and the overall resolution is unchanged |
| Load cell |
Basic configuration: tension and compression sensors (maximum load) Extended configuration: multiple sensors can be added |
| Effective test width | 150mm |
| Stretch space effectively | 800mm |
| Test speed range | 50～500mm/min |
| Displacement measurement accuracy | Within ± 0.5% of the indicated value |
|
Deformation measurement system |
Extended configuration: large deformation: minimum gauge length 10mm, deformation range: 800mm |
| Deformation measurement accuracy | Within ± 1% of the indicated value (large deformation or small deformation can be selected according to customer requirements) |
| Test bench safety device | Up and down stroke limiting device |
| Lifting device of test bench | Fast/slow speed automatic control, inching |
| Test bench return function | Manual or automatic selection, automatic or manual return to the initial test position after the test |
| Overload protection | The machine is automatically protected when the maximum load exceeds 10% |
| Fixture configuration | One set of stretching clamp |
| Expandable configuration | Fixtures or specially designed fixtures and accessories can be selected according to the test standards or test samples provided by the customer, and the cost will be calculated separately. |
| Size | 550×420×1800mm(L*W*H) |
| Motor type | Variable frequency motor |
| Power supply | 220V,50HZ, |
| Power | 0．4KW |
| Weight | 150 Kg |
