Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | Skyline |
| Certification: | ISO |
| Model Number: | Lab Testing Equipment |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | polywood case |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Machine Weight: | 380kg | Machine Size: | 420×3500×1520mm |
|---|---|---|---|
| Test Width: | 150mm | Stretch Space: | 500mm |
| Test Speed Range: | 5~500 Mm/min | Ccuracy Grade: | Grade 0.5 |
| High Light: | Servo Tensile Testing Machine,Computerized Tensile Testing Machine,Servo Lab Testing Equipment |
||

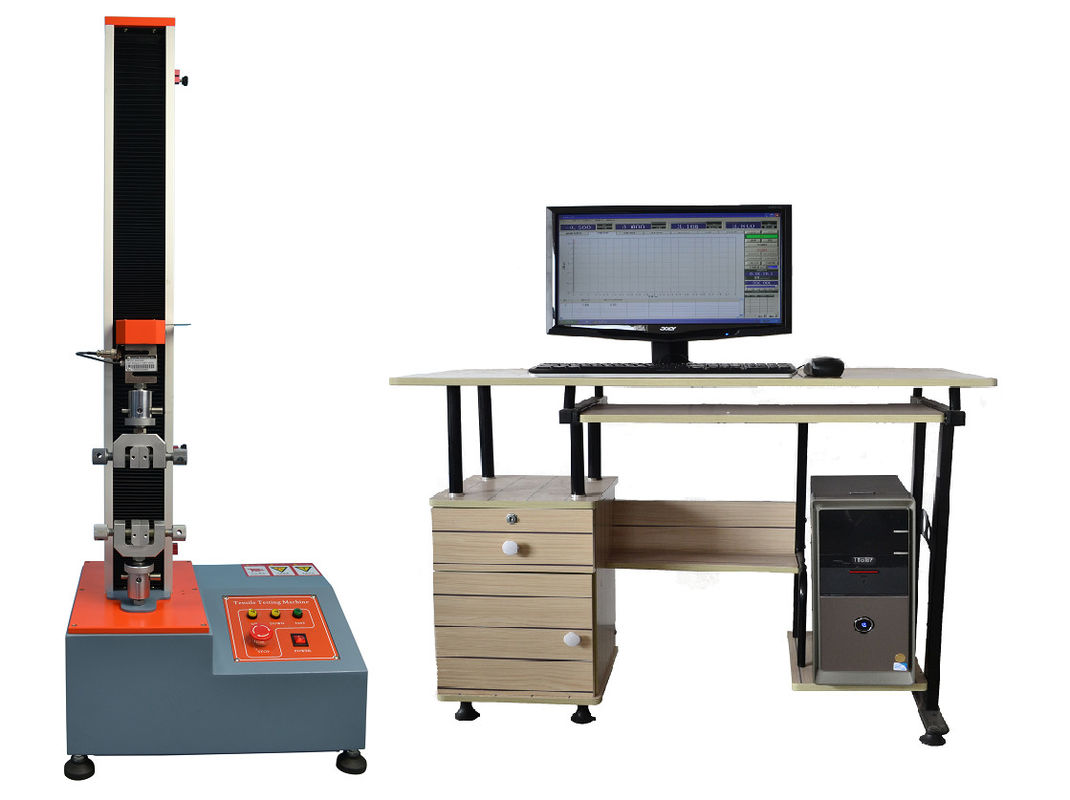

This machine is suitable for testing and analyzing the mechanical properties of rubber, tire, rubber tube, tape, sole, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum plastic pipe, composite material, waterproof material, fiber, textile, wire and cable, paper, gold foil, tape, silk thread, spring, wood, medical packaging materials, tape, etc., such as stretching, compression, tearing, peeling (both 90 degrees and 180 degrees).
This machine is a new type of material testing machine that combines electronic technology with mechanical transmission. It has high accuracy and sensitivity for the measurement and control of load, deformation and displacement. This series of models adopts a single space structure, with the test space in the lower space. It is mainly applicable to the test of metal and non-metallic materials with the test load less than 5kN. It has a stress, strain and displacement control mode, and can calculate the maximum force, tensile strength, bending strength, compression strength Elastic modulus, elongation at break, yield strength and other parameters.
| Capicity selection(kg) | 2,5,10,20,50,100,200kg can be selected |
| Accuracy grade | Grade 0.5 |
| Effective force measuring range | 0.4%~100% |
| Force measuring accuracy | ± 0.5% of the indicated value |
| Data sampling frequency | 200times/sec |
| Resolution of testing machine | The maximum load is 1/± 25000 yards, and the internal and external are not graded, and the overall resolution is unchanged |
| Load cell | Basic configuration: tension and compression sensors (maximum load) |
| Effective test width | 150mm |
| Stretch space effectively | 500mm |
| Test speed range | 50-500 mm/min |
| Displacement measurement accuracy | Within ± 0.5% of the indicated value |
| Test bench return function | Manual or automatic selection, automatic or manual return to the initial test position after the test |
| Test bench safety device | Up and down stroke limiting device |
| Overload protection | The machine is automatically protected when the maximum load exceeds 10% |
| Fixture configuration | One set of stretching clamp |
| Machine size | 420×3500×1520mm |
| Machine weight | 200 Kg |
