Place of Origin: | China |
Brand Name: | Skyline |
Certification: | ISO |
Model Number: | Lab Testing Equipment |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiable |
Packaging Details: | polywood case |
Delivery Time: | 15 working days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1 pcs per month |
Capicity: | 100,200,500,1000,2000kg | Display Mode: | Touch Screen Control |
---|---|---|---|
Effective Test Width: | 380mm | Stretch Space: | 1000mm |
Test Speed Range: | 50-300 Mm/min | Machine Weight: | 380kg |
Machine Size: | 1100×700×2000mm | Power Supply: | 220V/50Hz |
High Light: | Microcomputer Door Type Lab Testing Equipment,Microcomputer Door Tensile Testing Machine |

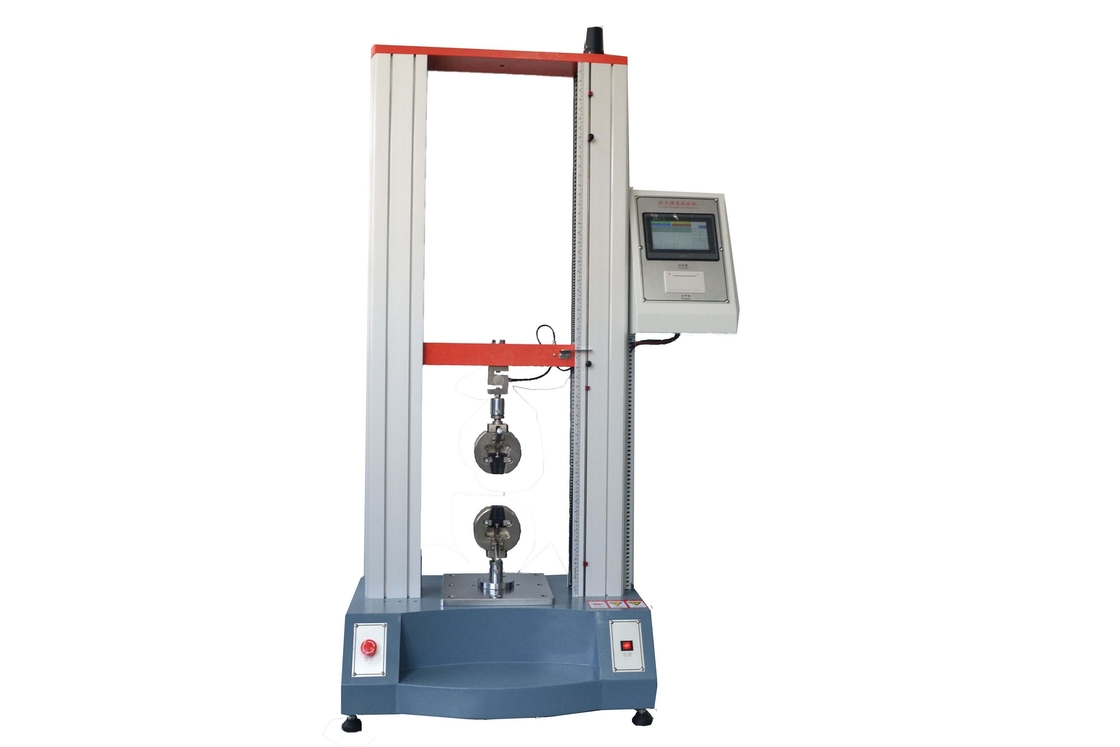

This machine is widely used in the mechanical property test of rubber, plastic, wire and cable, textile, waterproof materials, non-woven fabrics and other non-metallic materials, as well as metal wires, metal foils, metal plates and metal bars. It is also suitable for the tensile, compression, peeling, shearing and tearing tests of various finished products with special clamps.
*AC variable frequency motor is used to drive precision T-shaped screw drive, which is stable in operation and low in noise;
*Digital display of force value, maximum force value, displacement and extension displacement, and stepless adjustment of test speed;
*High precision encoder is used to measure displacement, with force value resolution up to 1/25000, high test precision, wide measurement range, convenient operation and low price;
*It has the functions of automatic stop, over-current, over-voltage and overload protection for test breaking;
*Micro printer is equipped to print test data in real time.
Capicity selection(kg) | 100,200,500,1000,2000kg can be selected |
Force measuring accuracy | Within ± 1% of the indicated value |
Display mode | Touch screen control |
Unit switching | Kg,lb,N |
Data sampling frequency | 200times/sec |
Resolution of testing machine | The maximum load is 1/± 25000 yards, and the internal and external are not graded, and the overall resolution is unchanged |
Load cell | Basic configuration: tension and compression sensors (maximum load) |
Effective test width | 380mm |
Stretch space effectively | 1000mm |
Test speed range | 50-300 mm/min stepless speed regulation and 5-gear constant speed (special test speed can also be customized according to customer requirements) |
Displacement measurement accuracy | Within ± 1% of the indicated value |
Breakpoint ratio setting | 0~99%,the user can set proper break down time according to different materials |
Test bench safety device | Up and down stroke limiting device |
Overload protection | The machine is automatically protected when the maximum load exceeds 10% |
Fixture configuration | One set of stretching clamp |
Machine size | 1100×700×2000mm |
Machine weight | 200 Kg |
Power supply | 220V/50Hz |
