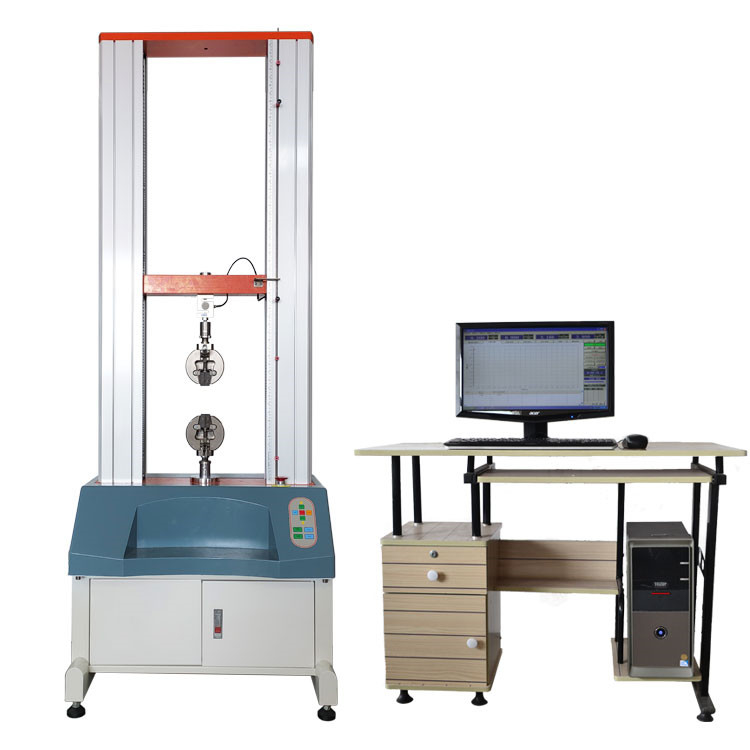

Servo Control Computer System Tensile Testing Machine 0.5KVA

Servo Control Computer System Tensile Testing Machine 0.5KVA

  • Servo Control Computer System Tensile Testing Machine 0.5KVA
Servo Control Computer System Tensile Testing Machine 0.5KVA
Product Details:
Place of Origin: China
Brand Name: Skyline
Certification: ISO,ASTM, DIN
Model Number: Lab Testing Equipment
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: polywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1 pcs per month
Contact Now
Detailed Product Description
Power: 1ø, 220 VAC, 50/60 Hz Power Consumption: 0.5KVA
Volume: 650x550x2200mm Weight: Host & Console:300kg & 100kg
Test Speed Range: 0.5~500 Mm/min Test Effective Width: 400mm
Test Stroke: 800mm Capacity: 100,200,500,1000,2000kg
High Light:

Servo Control Laboratory Testing Equipment

,

Servo Control Tensile Testing Machine

,

0.5KVA Tensile Testing Machine

Servo Control Computer System Laboratory Testing Equipment Tensile Testing Machine

Servo Control Computer System Tensile Testing Machine

Description of lab testing equipment

This machine is controlled by computer and is widely used in the mechanical property test of rubber, plastic, wire and cable, textile, waterproof materials, non-woven fabrics and other non-metallic materials as well as metal wires, metal foils, metal plates and metal bars. It is also suitable for the tensile, compression, peeling, shearing, tearing and bending (folding) tests of various finished products with special clamps. It can print multiple data, and can make graphic output comparison according to different data, with high control precision and simple operation; Modular design is adopted, and various accessories are complete and flexible.

This machine is mainly used for testing the mechanical properties of metals such as tension, compression, bending, etc. It can also realize multiple dead cycle tests such as constant stress, constant strain, creep, relaxation, axial, radial, etc. The tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation, elastic modulus and other parameters can be automatically calculated according to GB, JIS, ASTM, DIN and other standards.

Introduction to control software

  • Software operating system language: Simplified Chinese.

  • Force value unit: N, KN, Kgf, Lbf, length unit: mm, cm, in, freely convertible

  • Control mode: computer software sets speed, load break (break), running time and other control modes

  • Special manual operation box: it is convenient for calibration and positioning when holding the test piece

  • Automatically judge material fracture, crushing, etc. and automatically stop the machine. Automatic return can be set



  • Curve type: Load displacement, load time, displacement time.

                            Stress strain, strain time, stress time.

                            The vertical and horizontal coordinates of the curve can be set arbitrarily.

  • Available test data: maximum strength, minimum strength, breaking value, upper and lower yield strength, tensile strength, compressive strength, elastic modulus, elongation, maximum, minimum and average values of stripping interval, etc. (To be selected by the customer before ordering) It has multiple protections such as overload, overcurrent, overvoltage, undervoltage, overspeed, travel, etc. The data results are exported from the crystal report format currently adopted by the national standard.

Specifications:

Capacity Selection(kg) 100,200,500,1000,2000
Precision Level 0.5, the accuracy of test force indication is better than ± 0.5%
Load Sensing High precision tension pressure transducer
high resolution 1/100000
Magnification 24 bit AD stepless amplification
Unit selection N, KN
Test speed range 0.5~500 mm/min
Speed control accuracy ± 0.2% (Grade 0.5)
Test effective width 400mm
Test stroke (including fixture) 800mm
Overload setting protection function When exceeding 10% of the set test force, the system automatically stops for protection
Travel setting protection function Setting protection of upper and lower limit of travel,
Power AC servo motor&servo drive controller
Power consumption 0.5 kVA
Power supply 1ø, 220 VAC, 50/60 Hz
Hardware Specification The computer hardware specifications provided shall be purchased from the original ACER brand, or provided by the customer
Special software Refer to the software version of the computer measurement system
Standard accessories One set of tension clamps, one set of tools, one manual and one warranty
Punctuation extensometer

Large deformation (gauge length: 25,50,75,100mm)

Fixture Refer to fixture catalog for purchase, or provide sample specifications for design and manufacturing



Servo Control Computer System Tensile Testing Machine 0.5KVA 0
