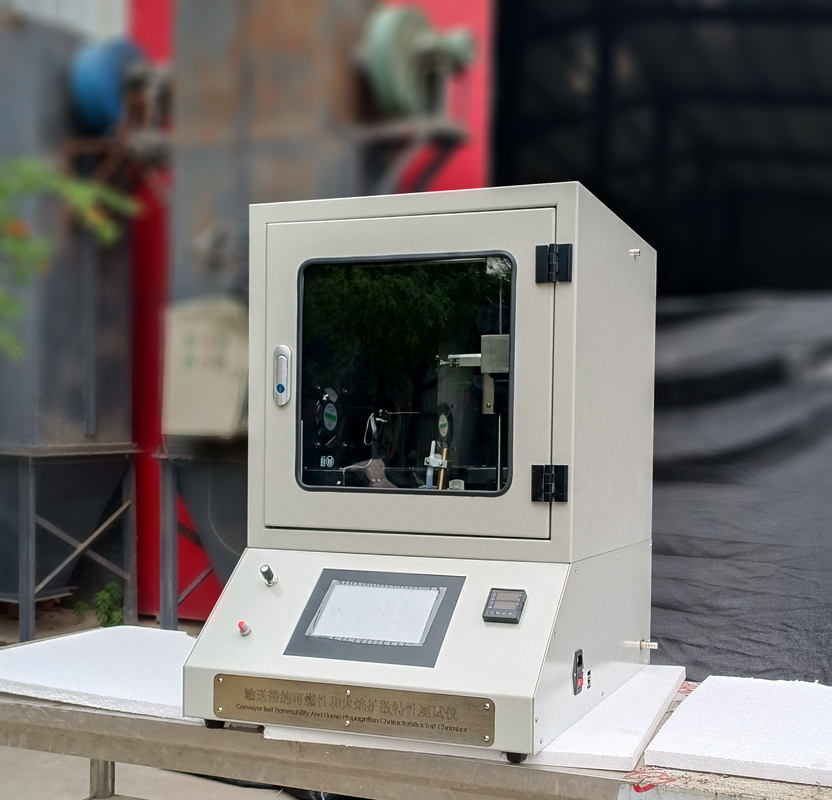

ISO 340 Conveyor Belt Vertical Burning Test Chamber

ISO 340 Conveyor Belt Vertical Burning Test Chamber

  • ISO 340 Conveyor Belt Vertical Burning Test Chamber
  • ISO 340 Conveyor Belt Vertical Burning Test Chamber
  • ISO 340 Conveyor Belt Vertical Burning Test Chamber
  • ISO 340 Conveyor Belt Vertical Burning Test Chamber
ISO 340 Conveyor Belt Vertical Burning Test Chamber
Product Details:
Place of Origin: CHINA
Brand Name: SKYLINE
Certification: CE
Model Number: SL-FL856V
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiated
Packaging Details: plywood case
Delivery Time: 10 working days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 1 unit/ month
Contact Now
Detailed Product Description
Materails: Steel Standards: ISO340
Bunsen Burner: The Inner Diameter Is 10.5mm Bunsen Burner Rotation Angle: 0°~45° Adjustable
Thermocouple: Type K Armor Thermocouple Display Range: 0~1300℃
High Light:

Conveyor Belt Vertical Burning Test Chamber

,

Conveyor Belt Vertical Burning Tester

,

ISO 340 Vertical Burning Test Chamber



ISO 340 Conveyor Belt Vertical Burning Test Chamber



1. Scope:
This tester is suitable for conveyor belts and steel cord conveyor belts with textile bodies, and is also suitable for testing the flammability and flame propagation characteristics of horizontally oriented conveyor belt samples;
2. Principle:
For a given period of time, the ends of the horizontally oriented conveyor belt specimens were exposed to flames, and the conveyor belt response to ignition sources was evaluated on a small scale. The duration of removal of the burner flame was measured, and after the flame died, a stream of air passed through the sample to measure the duration of afterglow.
3. According To The Standard:
This tester is produced according to the standards and requirements of AS 1334.10 1994 "Determination of Flammability and Flame Propagation Characteristics of Conveyor Belts" and ISO 340-2022 "Conveyor Belts - Laboratory Scale Flammability Characteristics - Requirements and Test Methods".
4. Relevant Definitions:
This test uses the following definitions:
1. Flame duration: after 60s, after the burner under the sample is removed, the sample continues to burn;
2. Afterglow: slow burning without flame;
3. Flame period: the total flame duration of a single group of tests;
4. Afterglow period: the total afterglow time of a single group of tests;
5. Acceptance test: a test in accordance with AS 1334.10 1994 to prove that the sample complies with its technical requirements;
6. Type certification: in accordance with AS 1334.10 1994 in order to comprehensively identify and evaluate product quality;
7. Vertical test: test according to ISO 340-2022.



Parameters

Items Specification
Ignition time setting range 0~999.9s
Combustion timing range 0~999.9s
Bunsen burner The inner diameter is 10.5mm
Bunsen burner rotation angle 45°~90°
Thermocouple Type k armor
Thermocouple display range 0~1300℃
Test flame temperature 1000±20℃
Flame ruler 50~150/180mm
Combustion chamber dimensions 500mmx500mm×500mm
Combustion gas Propane gas, purity > 95%
Volume (wxdxh) 555x651x738mm
Weight (approx.) ≈40kg
Power supply Ac 220v±10%,50~60hz
