Home ProductsFootwear Testing Equipment

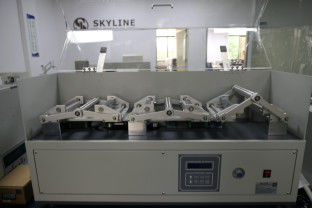

EN ISO 20344 Footwear Testing Equipment 5 To 150 R/Min Adjustable

EN ISO 20344 Footwear Testing Equipment 5 To 150 R/Min Adjustable

  • EN ISO 20344 Footwear Testing Equipment 5 To 150 R/Min Adjustable
  • EN ISO 20344 Footwear Testing Equipment 5 To 150 R/Min Adjustable
EN ISO 20344 Footwear Testing Equipment 5 To 150 R/Min Adjustable
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L105
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5-10 pcs / month
Contact Now
Detailed Product Description
SKYLINE: EN ISO 20344 Sole Flexing Tester Test Number: Three Outsole
Speed: (5 To 150)r/min Adjustable Flexing Degree: (90±2)º
Weight: 118kg Standards: GB/T2099 ,EN ISO 20344,EN ISO17707,EN-344 And SATRA TM161
High Light:

EN ISO 20344 Footwear Testing Equipment

,

EN ISO 20344 Sole Flexing Tester

,

Footwear Testing Equipment 150 R/Min

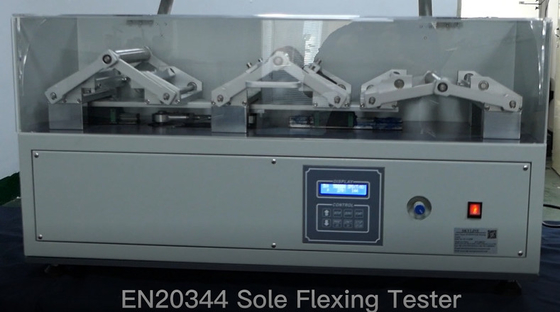

EN ISO 20344 Footwear Testing Equipment Sole Flexing Tester



Use:

Install the sole test piece on the EN sole flexing testing machine, so that the incision falls just above the center of the rotating shaft of the EN sole flexing testing machine, and drive the test piece on the shaft through the machine to stretch flexing (90±2)º .After a certain number of tests, measure the length of the incision of the test piece, and evaluate the torsion resistance of the test sole by the growth rate of the incision.



Technical parameters

Test number Three outsole can be tested at the same time
Flexing degree (90±2)º
Speed (5 to 150)r/min adjustable
Volume 1000*300*530mm
Diameter of flexing shaft 30mm
Weight 118kg
Power 190w
Power supply AC220V,10A



Standards

GB/T2099 ,EN ISO 20344,EN ISO17707,EN-344 and SATRA TM161



Parts list

1 cutter, 1 power cord, 1 wrench and 1 manual(In English).



Video: https://youtu.be/FR_nB_fKfoc



Catalogue-SL-L105 EN Sole Flexing Tester.pdf






This method is intended to determine the strength of the bond between the sole and upper at the toe and heel area of the lasted margin of completed footwear. The method is mainly applicable to stuck-on or moulded-on constructions with an extended sole edge.
