Anti Static Footwear Tester DC50V DC100V DC500V

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	GB/T, ISO
Model Number:	SL-L123A

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	plywood case
Delivery Time:	15 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	10 pcs/ month

Contact Now

Detailed Product Description

SKYLINE:

Anti-Static Tester

The Voltage Range:

DC50V, DC100V, DC500V.

Test Accuracy:

0.001-20000M Ohm

Operating Environment:

Temperature (0-40)℃, Humidity (20-90)%R.H

High Light:

Anti Static Tester Footwear Testing Equipment

DC50V Anti Static Tester

DC50V Anti Static Footwear Tester

Footwear Testing Equipment Anti-Static Tester

Instrument introduction

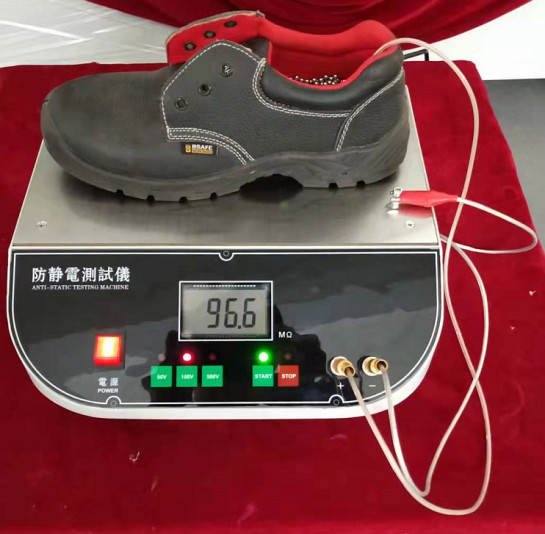

After a certain voltage passes through a closed circuit composed of a sample, steel balls and stainless steel plates, the resistance is measured, and whether the value falls within the antistatic insulation resistance range is used to evaluate whether the test sample has antistatic performance.

Reference standard

Comply with: GB/T20991,GB/T21148,ISO 20344,CAN/CSA-Z195

Technical specifications:

The voltage range	DC50V, DC100V, DC500V.
Test scope	0.001-20000M ohm
Test accuracy	2%, 5% and 10% vary with the test range
Operating environment	Temperature (0-40)℃, humidity (20-90)%R.H
Volume	(35x34x14)cm
Weight	About 11kg
Electricity source	AC220V,50HZ

Accessory part
1. 4kg of 5mm stainless steel beads and 1 power cord.
2. One copy of instruction and one copy of warranty.

Note:
EN, GB: (0.1-1000) m ohm is antistatic, and the voltage is DC100V.
Astm: (1-1000) anti-static in the range of m ohms, and the voltage is DC50V.
CsA: (1-100) anti-static in the megaohm range, and the voltage is DC500V.
