Carton Box Compression Testing Machine/ Compressive Strength Tester With LCD Display Strength Testing Machine

Carton Box Compression Testing Machine/ Compressive Strength Tester With LCD Display Strength Testing Machine

  • Carton Box Compression Testing Machine/ Compressive Strength Tester With LCD Display Strength Testing Machine
  • Carton Box Compression Testing Machine/ Compressive Strength Tester With LCD Display Strength Testing Machine
  • Carton Box Compression Testing Machine/ Compressive Strength Tester With LCD Display Strength Testing Machine
  • Carton Box Compression Testing Machine/ Compressive Strength Tester With LCD Display Strength Testing Machine
  • Carton Box Compression Testing Machine/ Compressive Strength Tester With LCD Display Strength Testing Machine
Carton Box Compression Testing Machine/ Compressive Strength Tester With LCD Display Strength Testing Machine
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-E11B
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Plywood case
Delivery Time: 15 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Intelligent Compressive Strength Testing Machine Pressure Plate Size: 1000*1000*1000mm
Force Resolution: 1/100000 Display Resolution: 0.001N
Test Speed: 12.5mm/min
High Light:

GB/T 4857.3-92 Compressive Strength Tester

,

LCD Display Compressive Strength Tester

,

GB/T 4857.3-92 Compressive Strength Test Apparatus

GB/T 4857.4-92  Intelligent Carton Box Compression Testing Machine
                                                             Carton Box Compression Testing Machine/ Compressive Strength Tester With LCD Display Strength Testing Machine 0

Product Description:

It is the basic instrument for testing the compressive strength of corrugated boxes (i.e., packaging testing equipment), which is suitable for the compressive strength test, compliance test and stacking strength test of all kinds of corrugated boxes.


Product features:

1. After the test is completed, there is an automatic return function to automatically judge the crushing force and automatically save the test data.

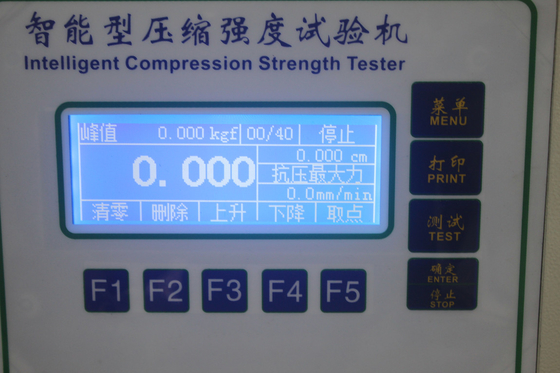

2. Three settable speeds, all-Chinese LCD display interface, and various units to choose from.
3. Relevant data can be input and the compressive strength can be automatically converted, with the packaging stacking test function; The power and time can be set directly, and the machine will stop automatically after the test is completed.
4. Three working modes:
Strength test: It can measure the maximum pressure resistance of the box;
Fixed value test: the overall performance of the box can be tested according to the set pressure;
Stacking test: Stacking tests under different conditions such as 12 hours and 24 hours can be carried out according to the requirements of national standards.

Conform to the standard:

GB/T 4857.4-92 pressure test method for packaging and transportation packages
GB/T 4857.3-92 static load stacking test method for packaging and transportation packages

Technical parameters:

 Capacity selection

 0~2T (can be customized according to customer requirements)

 Accurate grade

 Level 1

 Control mode

 Microcomputer control (optional computer operating system)

 Display mode

 Electronic LCD display (or computer display)

 Unit switching

 kgf,gf ,N,kN,lbf

 Unit stress switching

 MPa,kPa,kgf/cm2,lbf/in2

 Displacement unit

 mm, cm, in

 Force resolution

 1/100000

 Display resolution

 0.001N

 Machine schedule

 1000mm

 Pressure plate size

 1000*1000*1000mm

 Test speed

 12.5mm/min

 Software function

 Chinese-English language exchange

 Shutdown mode

 Overload stop, emergency stop button, automatic stop for specimen damage, automatic stop for upper and lower limit setting.

 Security equipment

 Overload protection, limit element protection device

 Power machine

 AC variable frequency motor drive controller

 Mechanical system

 High precision ball screw

 Power Supply

 AC220V/50HZ~60HZ 4A

 Machine weight

 About 350KG

 Performance characteristics

 You can set the percentage fracture value, automatically stop the machine, enter the menu to select 4 different speeds, and get 20 results. You can view the average value of all test results and single results.
