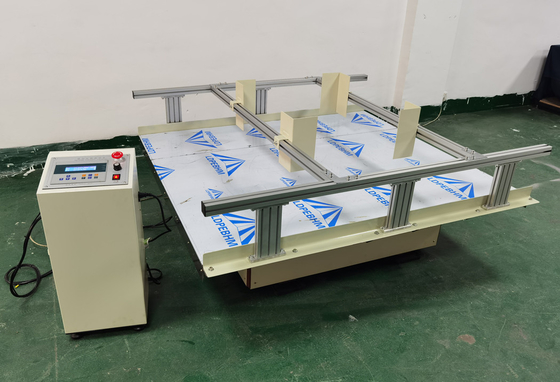

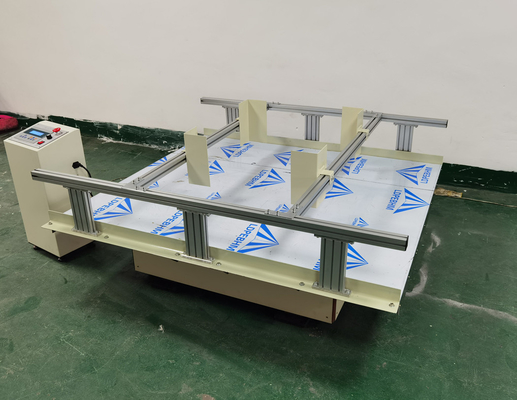

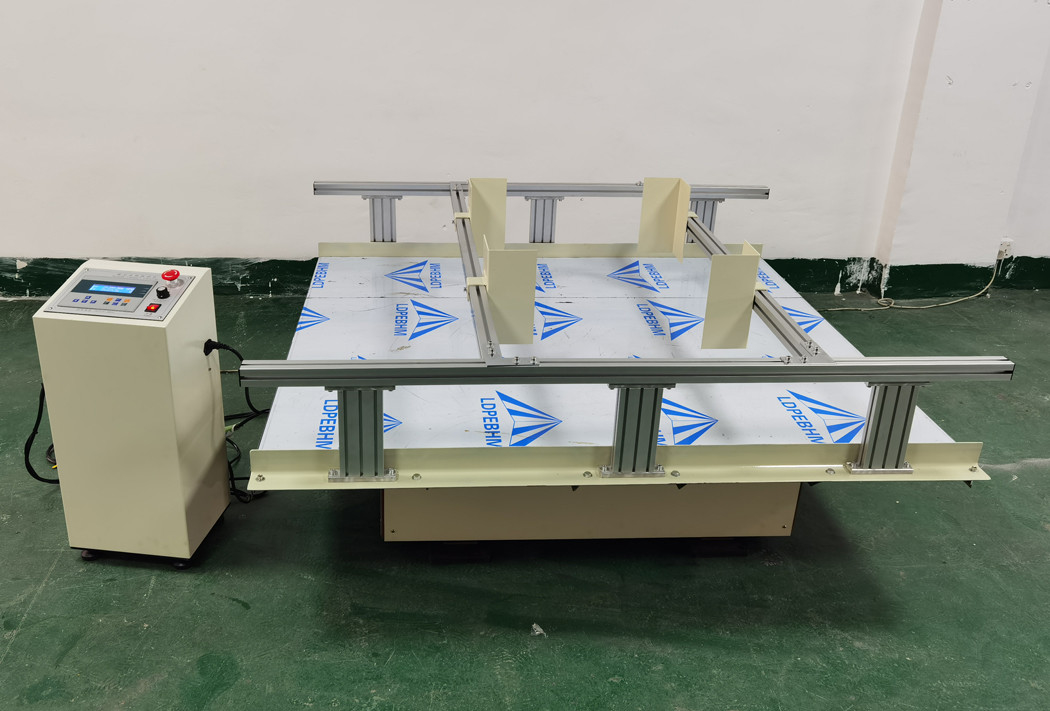

ASTM IEC 1000kg Transportation Vibration Tester Vibration Testing Machine For Package

ASTM IEC 1000kg Transportation Vibration Tester Vibration Testing Machine For Package

  • ASTM IEC 1000kg Transportation Vibration Tester Vibration Testing Machine For Package
  • ASTM IEC 1000kg Transportation Vibration Tester Vibration Testing Machine For Package
  • ASTM IEC 1000kg Transportation Vibration Tester Vibration Testing Machine For Package
  • ASTM IEC 1000kg Transportation Vibration Tester Vibration Testing Machine For Package
ASTM IEC 1000kg Transportation Vibration Tester Vibration Testing Machine For Package
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Model Number: SL-T18
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: Plywood case
Delivery Time: 5 working days
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: 10 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Transportation Vibration Tester Adjustable Speed: 50~300 Times/min
Vibrating Range: 25.4mm(1") Maximum Load: 1000kg
Effective Area Of Table: 140x160cm Dimemsion: 190 X 160CM
Standards: ASTMD999, ISTA Project 1A,2 Vibrating Manner: Rotary (positives Type)turn
High Light:

1000kg Transportation Vibration Tester

,

IEC Transportation Vibration Tester

,

ASTM Vibration Testing Machine

1000kg Transportation Vibration Tester for package Test

                                             ASTM IEC 1000kg Transportation Vibration Tester Vibration Testing Machine For Package 0

        Product information

  • Universal Vibration Test Machine/Simulated Transport Vibration Tester is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics, equipment, etc., under simulated transport conditions, according to American and EU transport standard (ASTM,IEC).
  • Simulation products in transportation state of environmental assess product packaging design, the rationality and structure strength.
  • Test object:Packaging for shipment of the products.
  • Test program:Will the packaging products with a certain speed vibration corresponding time.
  • Result assessment: By vibration testing products shall promote function and appearance were damaged.


Technical Parameters

 Adjustable speed  50~300 times/min
 Vibrating range  25.4mm(1")
 Timer  0-99999 hour
 Vibrating manner  Rotary (positives type)turn
 Maximum load 1000kg
 Effective area of table  140x160cm
 Motor  1HP(750W) 3HP(2.25kw) 5HP(3.75KW)   7HP(5.25KW)
 Dimemsion  190 X 160CM



Transportation Vibration Testing Machine.pdf



ASTM IEC 1000kg Transportation Vibration Tester Vibration Testing Machine For Package 1
