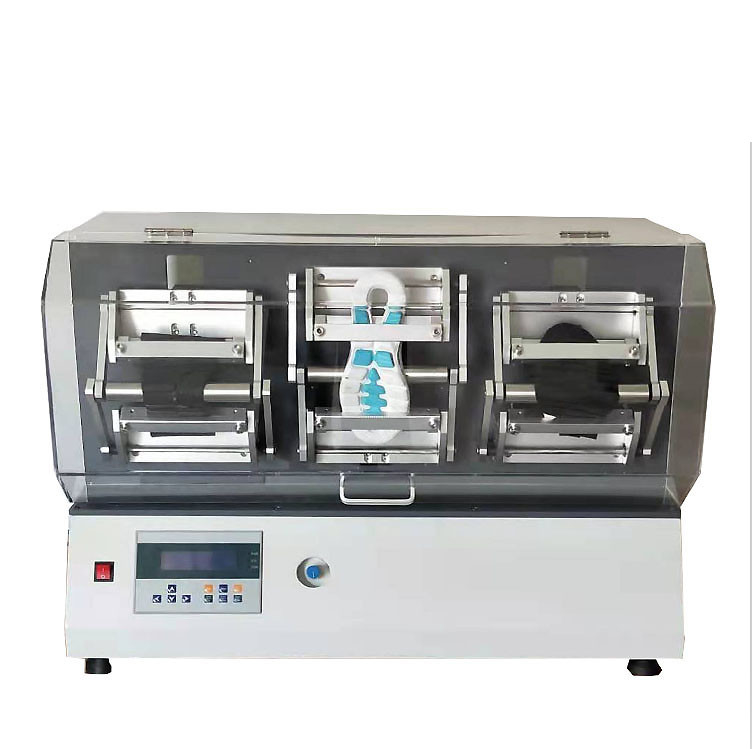

Name: AC220V 5A SATRA TM161 EN20344 Sole Flexing Tester
Brand: SKYLINE INSTRUMENTS CO.,LTD
Price: 4,500.00 USD
Availability: InStock

Home Products Footwear Testing Equipment

AC220V 5A SATRA TM161 EN20344 Sole Flexing Tester

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negoitable
Packaging Details:	plywood case
Delivery Time:	15 working days
Payment Terms:	Western Union, MoneyGram, T/T
Supply Ability:	3

Contact Now

Detailed Product Description

SKYLINE:	Sole Flexing Testing Machine	Bending Angle:	(90±2)º
Diameter Of Zigzag Shaft:	30mm	Volume:	(83x44x62) Cm
Weight:	About 115kg	Power Supply:	AC220V, 5A
Highlight:	SATRA TM161 Sole Flexing Tester , EN20344 Sole Flexing Tester , AC220V 5A Footwear Testing Equipment

Footwear Testing Equipment SATRA TM161 Sole Flexing Testing Machine

Instrument introduction

Install the sole test piece on the EN Flexing testing machine, so that the incision falls just above the center of the rotating shaft of the EN Flexing testing machine, and the EN Flexing testing machine drives the test piece to stretch (90±2)º on the shaft to bend, After a certain number of tests, the length of the incision of the test piece is measured, and the torsion resistance of the test sole is evaluated by the growth rate of the incision.

Reference standard

Comply with: GB/T20991, GB21148, SATRA TM161, EN20344, ISO-17707, EN344 standard.

Technical Specifications

1. Three outsole can be measured at the same time

2. Bending angle: (90±2)º

3. Speed: (5 to 150) r/min adjustable

4. Diameter of zigzag shaft: 30mm

5. Volume; (83x44x62) cm

6. Weight: about 115kg

7. Power: frequency conversion 400w

8. Power supply: AC220V, 5A
