Skyline Instruments Co.,LTD
We only manufacture Lab Testing Equipment
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SKYLINE |
| Certification: | CE |
| Model Number: | SL-T14 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | Plywood case |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 10 unit/ month |
| Speed: | 0.3 ~ 200rpm | Measurement Range: | 100 MPa•s～2×105 MPa•s |
|---|---|---|---|
| Rotor Speed: | (5,10,20,50)r/min | Measurement Error: | ±1% (F•S) |
| Temperature Control Range: | 45 ℃～200 ℃ | Temperature Control Accuracy: | ±0.1 ℃ |
| High Light: | 200rpm Adhesion Meter,RS232 Interface Adhesion Meter,RS232 Interface Cosmetics Testing Equipment |
||

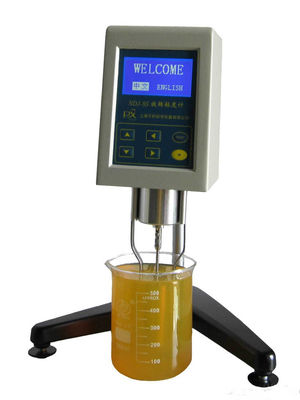

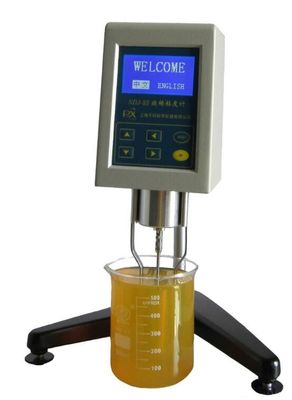

Digital Adhesion Meter
Detailed parameter
Sheen new digital adhesion meter fast, effective and accurate measurement of viscosity, provides an ideal solution, it is easy to use, wide application, can be used for detection of various liquids. Measurement of torque, rotational speed can be displayed, rotor model, and the results calculated viscosity.
Characteristic
1. Speed from 0.3 ~ 200rpm
2. LCD screen can be clearly shown from the choice of operating parameters
3. Installation of new equipment slowed the rate improved to prevent dramatic changes in the rotor torque with platinum
4. Platinum probe can measure temperature.
5. Interface options / software records
6. Input density can test the kinematic viscosity range
7. Automatically display range
8. Can store 10 user-defined test set
9. 8 languages selectable
10. When the reading in the full scale and below 15% will alarm
Technical parameters
| Measurement range | 100 mPa•s～2×105 mPa•s (If you select the No.30 spindle, the measurement range can be extended to 4×105 mPa•s) |
| Rotor Specifications | No.21, 27, 28 and 29 total 4 pieces of spindles (the No.30 spindle is optional) |
| Rotor speed | (5,10,20,50)r/min |
| Measurement error | ±1% (F•S); (If you select the No.30 spindle, it will be ±3% (F•S) |
| Temperature control range | 45 ℃～200 ℃ |
| Temperature control accuracy | ±0.1 ℃ |
| Sample cylinder | 20ml |
| Print output | Needle printer |
| Communication with the PC | RS232 interface |
| Power supply | AC 220V±10%, 50 Hz |
| Ambient temperature | 5 ℃～35 ℃ (when the controlling temperature is close to ambient temperature, please run the air conditioner to let the ambient temperature be 5 ℃ lower than the controlling temperature) |
| Relative humidity | ≤80% |
Contact Person: Kate Guo
Tel: 13310805373
