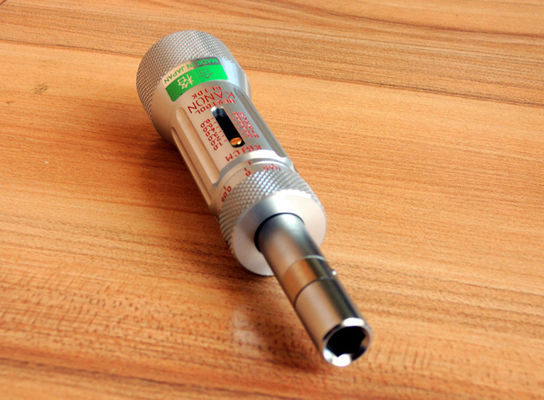

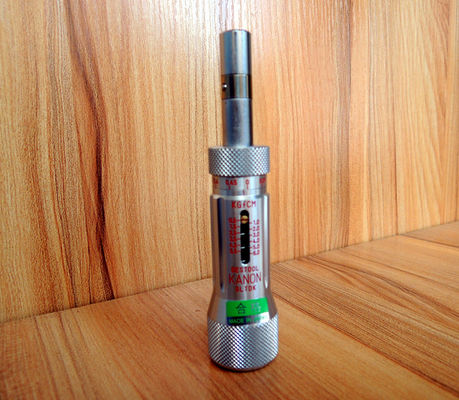

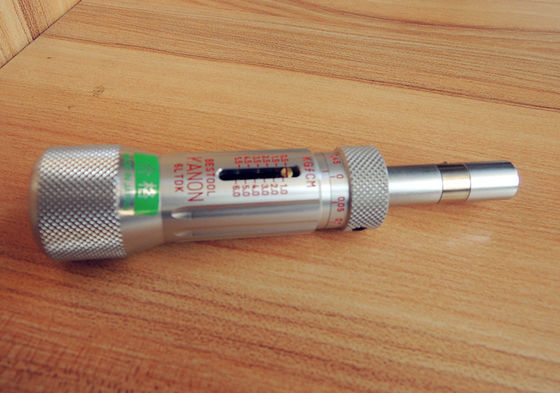

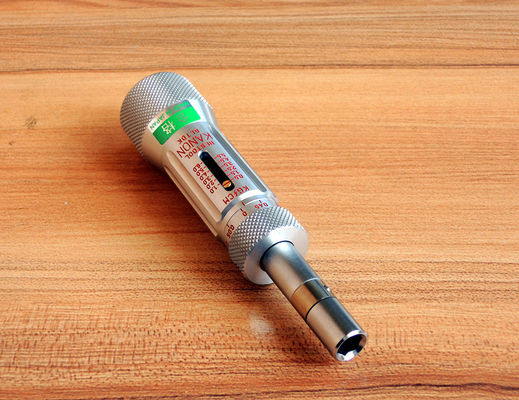

Electronic Testing Equipment 6LTDK Adjustable Torque Screwdriver 0.5-6 Kfg.cm

Electronic Testing Equipment 6LTDK Adjustable Torque Screwdriver 0.5-6 Kfg.cm

  • Electronic Testing Equipment 6LTDK Adjustable Torque Screwdriver 0.5-6 Kfg.cm
  • Electronic Testing Equipment 6LTDK Adjustable Torque Screwdriver 0.5-6 Kfg.cm
  • Electronic Testing Equipment 6LTDK Adjustable Torque Screwdriver 0.5-6 Kfg.cm
  • Electronic Testing Equipment 6LTDK Adjustable Torque Screwdriver 0.5-6 Kfg.cm
Electronic Testing Equipment 6LTDK Adjustable Torque Screwdriver 0.5-6 Kfg.cm
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: Calibration Certificate
Model Number: 6LTDK
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negoitable
Packaging Details: plywood case
Delivery Time: 5 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Torque Screw Driver Accuracy: ±3%
Bit Type: Standard Bits Range: 0.5 Kfg•cm - 6 Kfg•cm
Increments: 0.05 Kfg•cm Overall Length(w/o Bit): 4.3" (110mm)
Highlight:

sharp edge tester

,

electronic testing machine

6LTDK, Adjustable Torque Screwdriver, 0.5-6 Kfg.cm

Description

± 3% Accuracy of indicated value over full range

Clockwise (CW) and Counterclockwise (CCW)

Adjustable

Clutch Release

Two(2) Philips bits included (No.0 and No. 1 of SB type)



Specifications

 Model  6LTDK
 Bit Type Standard bits
 Range  0.5 Kfg•cm - 6 Kfg•cm
 Increments  0.05 Kfg•cm
 Overall Length(w/o bit)  4.3" (110mm)





Features

1.Comfortable grip for extended use.

2.Light weight and short overall length facilitates jobs

   Sensitive clutch release helps the operator feel when the torque stting is reached

3.Set the required torque value and lighten, all operators lighten consistently

4.Two Phillips bit are include

5.Various hex and box drive bits are available

6.Use for both clockwise and counter-clockwise lightening

7.Accuracy:±3% of indicated value over the full range,clockwise

8."H" models accept standard bits instead of CB type bits.
