Name: Wood Raft Flame Retardant Wood Burning Test Device with Automatic Ignition, Automatic Timing
Brand: SKYLINE

Home Products Flammability Testing Equipment

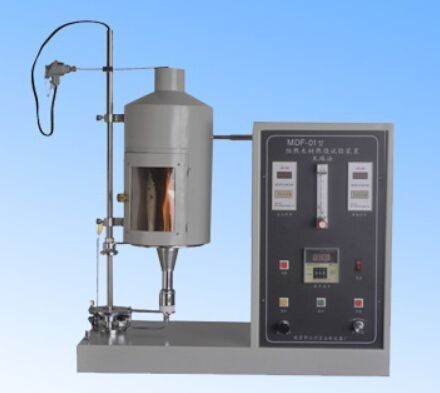

Wood Raft Flame Retardant Wood Burning Test Device with Automatic Ignition, Automatic Timing

Product Details:

Place of Origin:	China
Brand Name:	SKYLINE
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiated
Packaging Details:	plywood case
Delivery Time:	10 work days
Payment Terms:	T/T, L/C, Western Union, MoneyGram
Supply Ability:	1 unit/ month

Contact Now

Detailed Product Description

SKYLINE:	Wood Raft Flame Retardant Wood Burning Test Device	Gas Flow Meter:	Flow Range (0.025-0.25) M3/h
Balance:	Sense 0.1g	Digital Timer:	0-24 Min, Step Difference 1s
Flame Height:	250mm	Temperature:	(310±10) °C
High Light:	horizontal flammability tester , flammability test chamber

Wood Raft Flame Retardant Wood Burning Test Device

Application

It is suitable for testing the burning quality loss rate and flaming burning time of wood actually used in various production and engineering with a thickness of 20mm or more under the specified combustion conditions.

Technical Parameters
This machine has automatic ignition, automatic timing, automatic reset function;
The burner consists of a 50mm diameter nozzle and regulating valve, switching valve
Thermocouple: Nickel-chromium-nickel-silicon armored thermocouple with outer diameter of 3mm, precision class II
Gas flow meter: flow range (0.025-0.25) m3/h
Balance: Sense 0.1g
Digital timer: 0-24 min, step difference 1s
The burner ignites the sample for 3 min.
Flame height is about 250mm, temperature (310±10) °C
