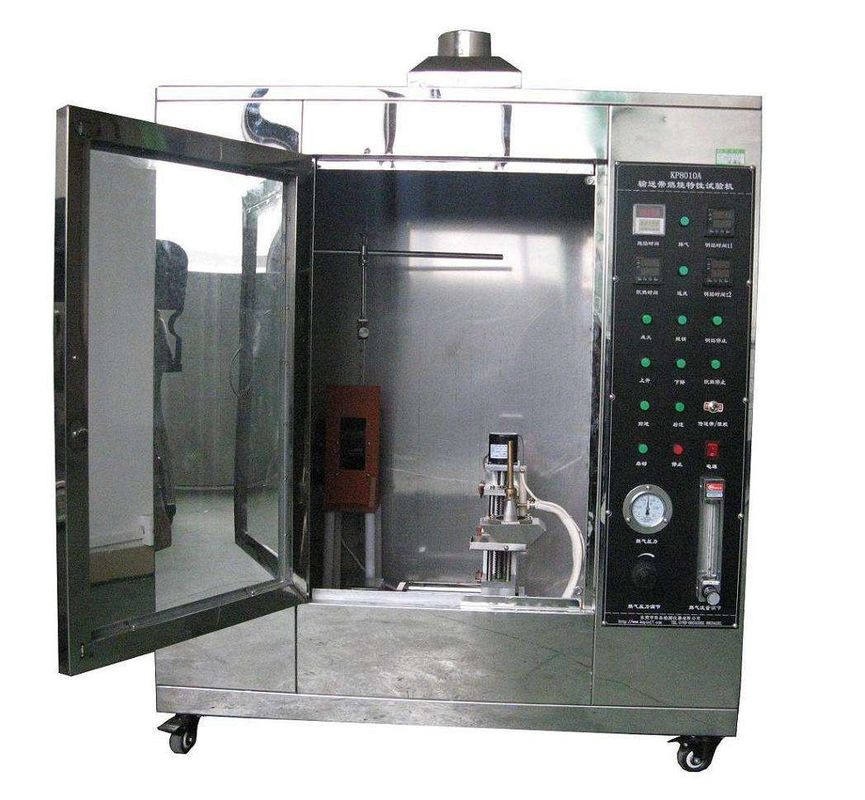

Conveyor Belt Vertical Burning Test Machine
Use
Applicable to the evaluation of the burning performance of textile core conveyor belt and steel core conveyor belt.
Standard
In line with ISO340:2004 standard.
Technical parameters
Automatic torch propulsion and lifting system;
| The inner diameter of the nozzle | 9.6mm |
| Air supply mode | the fan automatically supplies air, and the air supply time is 60S |
| Air supply wind speed | 1.5M/S |
| Electronic anemometer | test range 0~8M/S |
| TES thermometer | measuring range 0~1300°C, accuracy 0.1°C |
| Blowtorch angle | 45 degrees to the horizontal |
| Flame height | 170±10MM |
| Test chamber volume | 0.5m3 |
| Outer box size | L1000 mm × W600 mm × H1150mm |
| Fire-breathing method | automatic electronic ignition |
| Material | all use SUS 304 stainless steel |
| Weight | 40KG |
Note: The angle of the burner is adjustable. When the horizontal burning test is used, the burner is adjusted to 45°; when it is used for the vertical burning test, the burner is adjusted to 90°.
