ISO3582 Vertical Horizontal Combustion Test Machine for Foam to Evaluating the Relative Combustion Properties

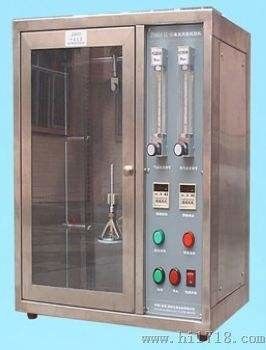

Vertical Horizontal Combustion Test Machine for Foam

Application
Suitable for evaluating the relative combustion properties of small samples of foam (foam rubber) under laboratory conditions.
Second, in line with the standard

Standards:  HBF, HF-1 and HF-2 of ISO3582 and UL94.

Technical  parameters
1. The dimensions of the test box: length 600mm, width 300mm, height 760mm see Figure 1
2. Timer: 0~99.99S can be set arbitrarily.
3. Combustion gas: gas
4. Burner: Bunsen burner. A wing top nozzle is mounted on the lamp, which is 400mm high
5. The taper angle is 60 °, the inside of the nozzle is 48 mm long and 3.0 mm wide
6. Flame height: blue inner flame 38mm, measured temperature from the top of the wing 1000 ° C
7. Sample support net: Φ0.8mm steel wire, mesh length 6.4mm on each side, net
8. Length 215mm, width 75mm, height 13mm
9. Vertical burning test: see Figure 3
10. Burner: Bunsen burner. The inner diameter of the cylinder is 9.5 mm. 15° to lead
11. Flame height: blue inner flame 30mm, inner flame tip temperature is 960 ° C
