Thermal Insulation Rock Wool Thermal Load Test Device for Rock Wool, Slag Wool and Glass Wool and Products

Name: Thermal Insulation Rock Wool Thermal Load Test Device for Rock Wool, Slag Wool and Glass Wool and Products
Brand: SKYLINE INSTRUMENTS CO.,LTD
Price: 4,500.00 USD
Availability: InStock

Brand Name:	SKYLINE
MOQ:	1 unit
Payment Terms:	MoneyGram, Western Union, T/T, D/P
Supply Ability:	1 unit/ week

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

SKYLINE:

Thermal Insulation Rock Wool Thermal Load Test Device

Room Temperature:

~ 40 ° C

Relative Humidity:

≤ 75%

Heating Power:

1000W

Working Voltage:

AC 220V ± 10V 50Hz

Zoom Measurement Range:

Room Temperature ~ 900 ° C

Packaging Details:

plywood case

Supply Ability:

1 unit/ week

Highlight:

horizontal flammability tester

flammability test apparatus

Product Description

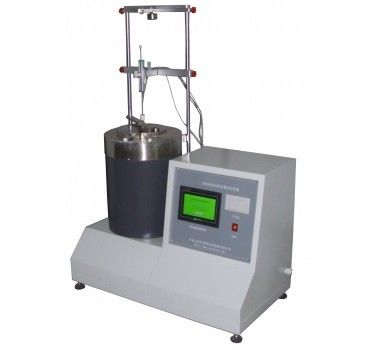

Thermal Insulation Rock Wool Thermal Load Test Device

Application
Suitable for rock wool, slag wool and glass wool and products. Under a fixed load, the sample is heated at a certain heating rate to achieve a specified thickness shrinkage rate, and the thermal load shrinkage temperature is determined by interpolation by calculation.

Compliance with standards
Meet the GB/T11835 standard.

Technical Parameters
The thermal load test device consists of a heating furnace, a heating vessel and a temperature sensor.

Ambient temperature	room temperature ~ 40 ° C
Relative humidity	≤ 75%
Working voltage	AC 220V ± 10V 50Hz
Heating power	1000W
Zoom measurement range	room temperature ~ 900 ° C
Heating rate	5° C / min ± 0.3 ° C and 3 ° C / min ± 0.2 ° C can be set

Features

The instrument uses a single-chip computer and multi-point programming.
The heat source is hot plate type, safe and reliable, and has a long service life.
The instrument is equipped with a face-printing printer that prints test results in a timely manner.
