Name: Flame Retardant Wood Burning Test Device for Indoor Decoration Wood products Burning Experiment
Brand: SKYLINE INSTRUMENTS CO.,LTD
Price: 4,500.00 USD
Availability: InStock

Home Products Flammability Testing Equipment

Flame Retardant Wood Burning Test Device for Indoor Decoration Wood products Burning Experiment

Product Details:

Place of Origin:	CHINA
Brand Name:	SKYLINE
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Packaging Details:	plywood case
Delivery Time:	10-15 days
Payment Terms:	MoneyGram, Western Union, T/T, D/P
Supply Ability:	1 unit/ week

Contact Now

Detailed Product Description

SKYLINE:	Flame Retardant Wood Burning Test Device	Standard:	GA/T42.2-92 Standard
Ambient Temperature:	-5 ° C - 30 ° C;	Ambient Humidity:	≤ 70%
Timing Accuracy:	0.1s	Temperature Error:	180±10oC;
Highlight:	horizontal flammability tester , flammability test chamber

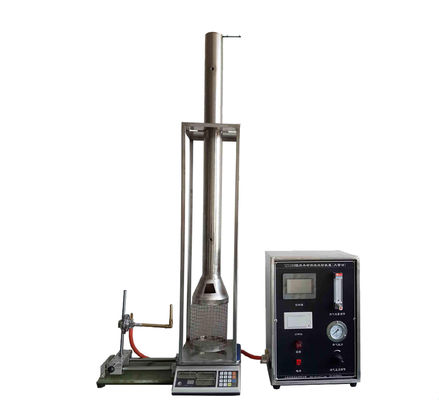

Flame Retardant Wood Burning Test Device

Application

Indoor decoration wood products burning experiment

Standard

GA/T42.2-92 standard

Technical parameters
Ambient temperature: -5 ° C - 30 ° C;

Ambient humidity: ≤ 70%

Operating voltage: AC 220 V ± 10V;
Microcomputer control; automatic ignition, timing; real-time temperature display; data printing.
Gas source: natural gas, liquefied petroleum gas;

Timing accuracy: 0.1s;

Temperature error: 180±10oC;
Electronic balance: weighing range 0 ~ 6000g, accuracy 0.1g.
Flame-retardant wood burning test device (fire tube method) test piece size mm: 1016 ± 1 × 19 ± 1 × 10 ± 1 quantity 3 pieces, when the test piece length is less than Required, two or more short test pieces can be used with wire or The nails are connected together and the total length is 1016mm±1 m. The flame-retardant wood burning Test device (fire tube method) has a size of about 680mm×320mm×1500mm.
