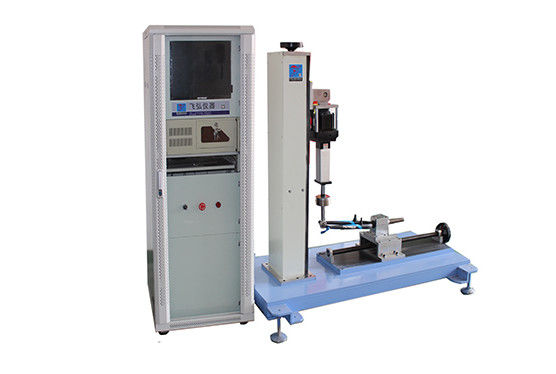

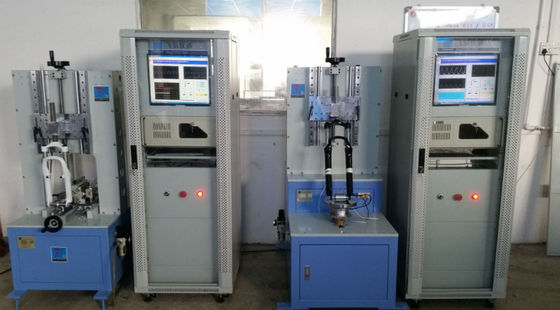

ISO4210-2014 PLC Automatic Control Bicycle Front Fork Horizontal Fatigue Tester

ISO4210-2014 PLC Automatic Control Bicycle Front Fork Horizontal Fatigue Tester

  • ISO4210-2014 PLC Automatic Control Bicycle Front Fork Horizontal Fatigue Tester
  • ISO4210-2014 PLC Automatic Control Bicycle Front Fork Horizontal Fatigue Tester
ISO4210-2014 PLC Automatic Control Bicycle Front Fork Horizontal Fatigue Tester
Product Details:
Place of Origin: China
Brand Name: SKYLINE
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Packaging Details: plywood case
Delivery Time: 15 working days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1 pcs/ month
Contact Now
Detailed Product Description
SKYLINE: Bicycle-Front-Fork-Horizontal- Fatigue-Tester Bending Angle: 5 Degrees
Number Of Bends: 50 (times / Min) Measuring Range: 100,000 Times
Frequency: 1-5HZ Amplitude: ±100
High Light:

physical testing equipment


brake testing equipment

Bicycle Front Fork Horizontal fatigue Tester


Product description

In the actual bicycle riding process, the wheel will be subjected to the external force of forward and backward, so that the front fork will continue to withstand the external force of alternating. The quality of the front fork is related to the safety and ease of use of the entire car.


According to the standard

EN14764:2005, ISO4210-2014, and meets/compliance with 16CFR1512 US standard requirements



1. Perform fatigue testing

2. PLC automatic control, the microcomputer computer observes all the frequency times; accurately records and displays the force value in real time; detects the running time and accumulated times; adopts computer control, all operations can be intuitively operated in the computer. The special control software can realize multi-channel closed-loop control, complete the functions of automatic control and automatic measurement of the test.

3. The number of detections can be set. After the detection is completed, the device will automatically stop and alarm.

4. With stop/de-interruption memory and breakpoint detection stop function; after sudden power failure, call again, the device can automatically save the data, and run according to the parameters set before power-off, no need to manually set the parameters.

5. Shutdown mode: When the number of arrivals is stopped, the components are damaged or the deformation is too large, the machine will stop automatically and alarm.

6. The device has a fault self-diagnosis system, the device is automatically diagnosed and the fault code is displayed, which is convenient for checking and troubleshooting.

7. Equipped with various fixtures required for testing.


Technical parameters

1. Database function: automatically record each measurement result, easy to analyze and provide evidence

2. Adjust the position locking screw to use the quick release type for easy operation. The adjustment position is adjusted by the lead screw.

3. Shutdown conditions: the air supply pressure is low, the deformation of the test piece is large, and the stroke of the cylinder exceeds the set value.

4. Equipped with independent electric control box

5. The solenoid valve is equipped with a shield to prevent damage.

6. With regulated gas tank, it can better stabilize the working pressure and make the loading force more stable.

7. The main body of the machine is a steel member with high strength and is not easily deformed.

8. The base of the machine is made of solid steel with good stability and is equipped with ribs and horizontal feet.

9. The appearance of the machine is electrostatically sprayed, and other parts are plated, with high anti-rust ability and beautiful appearance.


 Capacity  500kgf
 Load cell resolution  1/10,000
 Power control accuracy  0-5% (dynamic)
 Power source  pneumatic servo control system
 Number of trials  0-999999 can be set arbitrarily
 Test frequency  0-15Hz (adjustable)
 Host  95*45*90 (cm)
 Weight  about 200KG
 Power supply  1∮, 220V/50HZ
