Skates Durability Testing Machine For Simulation Of People Wearing Skates

Skates Durability Testing Machine For Simulation Of People Wearing Skates

  • Skates Durability Testing Machine For Simulation Of People Wearing Skates
Skates Durability Testing Machine For Simulation Of People Wearing Skates
Product Details:
Place of Origin: CN
Brand Name: SKYLINE
Certification: CE
Model Number: SL-L35
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negoitable
Packaging Details: plywood case
Delivery Time: 15 work days
Payment Terms: Western Union, MoneyGram, T/T
Contact Now
Detailed Product Description
SKYLINE: Skates Durability Testing Machine Speed: 0.5m/s
Motor Power: 3KW Roller Diameter: Ф700mm, Length 360mm
Number Of Impact Blocks: 12 Power Supply: AC220V 50HZ
Highlight:

abrasion resistance tester

,

rub resistance tester

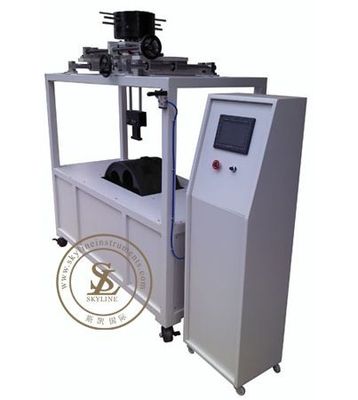

SL-L35 Skates Durability Testing Machine


Use
This machine is a simulation of people wearing skates. After a certain test time, the wear resistance of the pulleys is checked to determine the goodness of the test samples, which provides a reliable basis for improving product quality.
This machine drives the sprocket through the motor to drive the drum to rotate, and adjusts the rotation speed of the drum by adjusting the motor speed to achieve the test purpose.


Technical Parameters

 Roller diameter  Ф700mm, length 360mm
 The touch screen displays   speed and time
 Speed  0.5m/s
 Block height  class A 15mm, class B 10mm, single row 12.5mm
 Number of impact blocks  12
 Load Weight   60kg for class A and 40kg for class B
 Motor power  3kw
 Machine size(L×W×H)  (1800X580X1600) mm
 Weight  280kg
 Power supply  AC 220V 50HZ



Standards compliant
GB20096-2006
